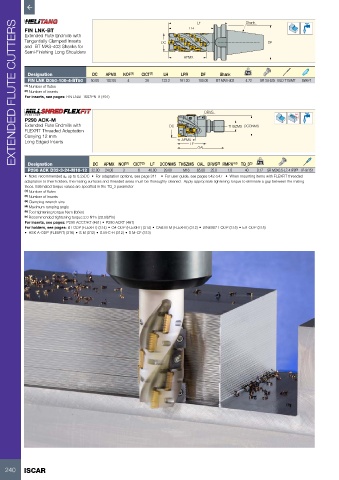

Page 242 - ISCAR(MILLINGCATALOG 38_2021)

EXTENDED FLUTE CUTTERS
LF Shank

FIN LNK-BT LH
Extended Flute Endmills with
Tangentially Clamped Inserts DC DF
and BT MAS-403 Shanks for
Semi-Finishing Long Shoulders
APMX

Designation DC APMX NOF (1) CICT (2) LH LPR DF Shank kg
FIN LNK D050-100-4-BT50 50.00 102.00 4 28 123.2 161.20 100.00 BT MAS-403 4.72 SR 34-535 BLD T15/M7 SW6-T
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: FIN LNAT 1607PN-R (491)

DRVS
Rd°

P290 ACK-M
Extended Flute Endmills with DC THSZMS DCONMS
FLEXFIT Threaded Adaptation
Carrying 12 mm
Long Edged Inserts APMX LF
OAL

Designation DC APMX NOF (1) CICT (2) LF DCONMS THSZMS OAL DRVS (3) RMPX° (4) TQ_3 (5) kg
P290 ACK D32-3-24-M16-12 32.00 24.00 3 6 40.00 29.00 M16 65.00 25.0 1.0 40 0.17 SR M3X0.5-L7.4 IP9 (a) IP-9/151
• Note: recommended ae up to 0.2xDC • For adaptation options, see page 311 • For user guide, see pages 542-547 • When mounting items with FLEXFIT threaded
adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating
faces. Estimated torque values are specified in the TQ_3 parameter
(1) Number of flutes
(2) Number of inserts
(3) Clamping wrench size
(4) Maximum ramping angle
(5) Tool tightening torque Nxm (lbfxin)
(a) Recommended tightening torque:2.0 N*m (20.0lbf*in)
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
