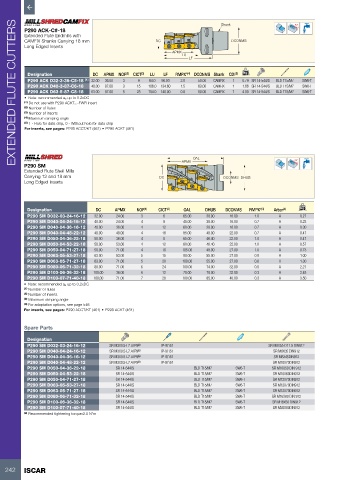

Page 244 - ISCAR(MILLINGCATALOG 38_2021)

EXTENDED FLUTE CUTTERS
Shank Rd°

P290 ACK-C#-18
Extended Flute Endmills with
CAMFIX Shanks Carrying 18 mm DC DCONMS
Long Edged Inserts
APMX
LU
LF

Designation DC APMX NOF (2) CICT (3) LU LF RMPX° (4) DCONMS Shank CDI (5) kg
P290 ACK D32-3-36-C5-18 (1) 32.00 36.00 3 9 64.0 90.00 2.0 50.00 CAMFIX 1 0.79 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D40-3-87-C6-18 40.00 87.00 3 15 106.0 134.60 1.5 63.00 CAMFIX 1 1.66 SR 14-544/S BLD T15/M7 SW6-T
P290 ACK D63-5-87-C8-18 63.00 87.00 5 25 104.0 140.00 0.8 80.00 CAMFIX 1 4.00 SR 14-544/S BLD T15/M7 SW6-T
• Note: recommended ae up to 0.2xDC
(1) Do not use with P290 ACKT...-FWR insert
(2) Number of flutes
(3) Number of inserts
(4) Maximum ramping angle
(5) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)

OAL
APMX Rd°

P290 SM
Extended Flute Shell Mills
Carrying 12 and 18 mm DC DCONMS DHUB
Long Edged Inserts

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS RMPX° (3) Arbor (4) kg
P290 SM D032-03-24-16-12 32.00 24.00 3 6 65.00 38.00 16.00 1.0 A 0.27
P290 SM D040-04-24-16-12 40.00 24.00 4 8 45.00 38.00 16.00 0.7 A 0.23
P290 SM D040-04-36-16-12 40.00 36.00 4 12 60.00 38.00 16.00 0.7 A 0.30
P290 SM D040-04-48-22-12 40.00 48.00 4 16 85.00 48.00 22.00 0.7 A 0.47
P290 SM D050-04-36-22-18 50.00 36.00 4 8 65.00 46.40 22.00 1.0 A 0.47
P290 SM D050-04-53-22-18 50.00 53.00 4 12 80.00 46.40 22.00 1.0 A 0.57
P290 SM D050-04-71-27-18 50.00 71.00 4 16 105.00 48.00 27.00 1.0 A 0.73
P290 SM D063-05-53-27-18 63.00 53.00 5 15 80.00 55.00 27.00 0.8 A 1.00
P290 SM D063-05-71-27-18 63.00 71.00 5 20 100.00 55.00 27.00 0.8 A 1.30
P290 SM D080-06-71-32-18 80.00 71.00 6 24 100.00 74.00 32.00 0.5 A 2.21
P290 SM D100-06-36-32-18 100.00 36.00 6 12 70.00 78.00 32.00 0.3 A 2.48
P290 SM D100-07-71-40-18 100.00 71.00 7 28 100.00 85.00 40.00 0.3 A 3.50
• Note: recommended ae up to 0.2xDC
(1) Number of flutes
(2) Number of inserts
(3) Maximum ramping angle
(4) For adaptation options, see page 548
For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461)

Spare Parts

Designation
P290 SM D032-03-24-16-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M8X55-D11.5 DIN912
P290 SM D040-04-24-16-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M8X35 DIN912
P290 SM D040-04-36-16-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M8X45DIN912
P290 SM D040-04-48-22-12 SR M3X0.5-L7.4 IP9 (a) IP-9/151 SR M10X70DIN912
P290 SM D050-04-36-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X50 DIN 912
P290 SM D050-04-53-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X60DIN912
P290 SM D050-04-71-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912
P290 SM D063-05-53-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912
P290 SM D063-05-71-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912
P290 SM D080-06-71-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X80 DIN 912
P290 SM D100-06-36-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X50 DIN912
P290 SM D100-07-71-40-18 SR 14-544/S BLD T15/M7 SW6-T SR M20X80DIN912
(a) Recommended tightening torque:2.0 N*m
