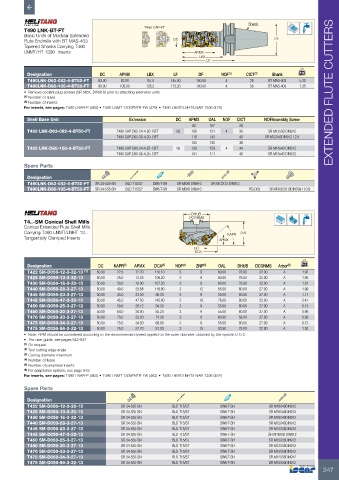

Shank
T490 CAP-FT
T490 LNK-BT-FT
Basic Units of Modular Extended
Flute Endmills with BT MAS-403 DC DF
Tapered Shanks Carrying T490
LNMT/HT 1306 Inserts APMX
LBX
LF

Designation DC APMX LBX LF DF NOF (1) CICT (2) Shank kg
T490LNK-D63-082-4-BT50-FT 63.00 82.00 107.0 145.00 100.00 4 28 BT MAS-403 5.32
T490LNK-D80-105-4-BT50-FT 80.00 105.00 135.2 173.20 100.00 4 36 BT MAS-403 7.35
• Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units EXTENDED FLUTE CUTTERS
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Shell Base Unit Extension DC APMX OAL NOF CICT NOFAssembly Screw
82 107 28
T490 LNK-D63-082-4-BT50-FT T490 CAP-D63-24-4-20-13FT 63 106 131 4 36 SR M12x30 DIN912
T490 CAP-D63-36-4-20-13FT 118 143 40 SR M12X45DIN912 12.9
105 135 36
T490 LNK-D80-105-4-BT50-FT T490 CAP-D80-24-4-25-13FT 80 129 159 4 44 SR M16x40 DIN912
T490 CAP-D80-36-4-25-13FT 141 171 48 SR M16x40 DIN912

Spare Parts
Designation
T490LNK-D63-082-4-BT50-FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X6 DIN916 SR M12X12 DIN912
T490LNK-D80-105-4-BT50-FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X8 DIN916 PG D63 SR M3X0.5X10DIN7991 10.9

DHUB
DCONMS

T4..-SM Conical Shell Mills
Conical Extended Flute Shell Mills
Carrying T490 LNMT/LNHT 13... KAPR OAL
Tangentially Clamped Inserts APMX
DC
DCX

Designation DC KAPR (2) APMX DCX (3) NOF (4) ZNP (5) OAL DHUB DCONMS Arbor (6) kg
T422 SM-D050-12-3-32-13 (1) 50.00 22.5 12.20 110.10 3 9 60.00 78.00 32.00 A 1.92
T425 SM-D050-13-3-32-13 50.00 25.0 13.55 109.20 3 9 60.00 78.00 32.00 A 1.85
T430 SM-D050-16-3-32-13 50.00 30.0 16.00 107.20 3 9 60.00 78.00 32.00 A 1.81
T440 SM-D050-28-3-27-13 50.00 40.0 28.88 118.80 3 12 65.00 60.00 27.00 A 1.99
T445 SM-D050-23-3-27-13 50.00 45.0 23.50 98.20 3 9 55.00 60.00 27.00 A 1.17
T445 SM-D050-47-3-32-13 50.00 45.0 47.50 145.60 3 18 76.00 80.00 32.00 A 3.41
T450 SM-D050-25-3-27-13 50.00 50.0 26.12 94.30 3 9 55.00 60.00 27.00 A 0.13
T460 SM-D050-30-3-27-13 50.00 60.0 30.00 85.20 3 9 55.00 60.00 27.00 A 0.96
T470 SM-D050-33-3-27-13 50.00 70.0 33.20 74.30 3 9 60.00 58.00 27.00 A 0.86
T475 SM-D050-34-3-27-13 50.00 75.0 34.50 68.60 3 9 55.00 60.00 27.00 A 0.73
T475 SM-D050-56-3-32-13 50.00 75.0 57.70 81.00 3 15 83.50 78.00 32.00 A 1.52
• Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C.
• For user guide, see pages 542-547
(1) On request
(2) Tool cutting edge angle
(3) Cutting diameter maximum
(4) Number of flutes
(5) Number of peripheral inserts
(6) For adaptation options, see page 548
For inserts, see pages: T490 LNAR-P (464) • T490 LNMT 1306PNTR-FW (463) • T490 LNMT/LNHT/LNAR 1306 (462)
Spare Parts

Designation
T422 SM-D050-12-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912
T425 SM-D050-13-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912
T430 SM-D050-16-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X40DIN912
T440 SM-D050-28-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912
T445 SM-D050-23-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912
T445 SM-D050-47-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X50 DIN912
T450 SM-D050-25-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912
T460 SM-D050-30-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912
T470 SM-D050-33-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912
T475 SM-D050-34-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X35DIN912
T475 SM-D050-56-3-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X60DIN912
247
