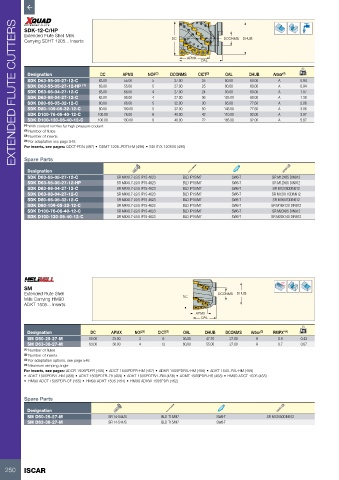

EXTENDED FLUTE CUTTERS

SDK-12-C/HP
Extended Flute Shell Mills
Carrying SDHT 1205... Inserts DC DCONMS DHUB

APMX
OAL

Designation DC APMX NOF (2) DCONMS CICT (3) OAL DHUB Arbor (4) kg
SDK D63-55-05-27-12-C 63.00 55.00 5 27.00 25 80.00 60.00 A 0.94
SDK D63-55-05-27-12-HP (1) 63.00 55.00 5 27.00 25 80.00 60.00 A 0.94
SDK D63-66-04-27-12-C 63.00 66.00 4 27.00 24 93.00 60.00 A 1.07
SDK D63-98-04-27-12-C 63.00 98.00 4 27.00 36 125.00 60.00 A 1.38
SDK D80-66-05-32-12-C 80.00 66.00 5 32.00 30 95.00 77.60 A 2.06
SDK D80-109-05-32-12-C 80.00 109.00 5 32.00 50 143.00 77.60 A 3.06
SDK D100-76-06-40-12-C 100.00 76.00 6 40.00 42 110.00 92.00 A 3.97
SDK D100-130-06-40-12-C 100.00 130.00 6 40.00 72 165.00 92.00 A 5.87
(1) With coolant nozzles for high pressure coolant
(2) Number of flutes
(3) Number of inserts
(4) For adaptation see page 548
For inserts, see pages: QDCT-PDN (497) • QDMT 1205..PDTN-M (498) • SDHT/X 120508 (498)
Spare Parts

Designation
SDK D63-55-05-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X65 DIN912
SDK D63-55-05-27-12-HP SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X65 DIN912
SDK D63-66-04-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X80DIN912
SDK D63-98-04-27-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M12X110DIN912
SDK D80-66-05-32-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M16X70DIN912
SDK D80-109-05-32-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M16X120 DIN912
SDK D100-76-06-40-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M20X85 DIN912
SDK D100-130-06-40-12-C SR M4X0.7-L9.5 IP15-4623 BLD IP15/M7 SW6-T SR M20X140 DIN912

Rd°

SM
Extended Flute Shell DCONMS DHUB
Mills Carrying HM90 DC
ADKT 1505... Inserts
APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) RMPX° (4) kg
SM D50-25-27-M 50.00 25.00 3 6 56.00 47.70 27.00 A 0.9 0.43
SM D63-38-27-M 63.00 38.00 4 12 60.00 55.00 27.00 A 0.7 0.67
(1) Number of flutes
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Maximum ramping angle
For inserts, see pages: ADCR 1505PDFR (456) • ADCT 1505PDFR-HM (457) • ADKR 1505PDR/L-HM (456) • ADKT 1505..R/L-HM (459)
• ADKT 1505PDR/L-HM (458) • ADKT 1505PDTR-76 (459) • ADKT 1505PDTR/L-RM (458) • ADMT 1505PDR-HS (458) • HM90 ADCT 1505 (455)
• HM90 ADCT 1505PDR-CF (455) • HM90 ADKT 1505 (454) • HM90 ADKW 1505PDR (462)

Spare Parts
Designation
SM D50-25-27-M SR 14-544/S BLD T15/M7 SW6-T SR M12X50DIN912
SM D63-38-27-M SR 14-544/S BLD T15/M7 SW6-T
