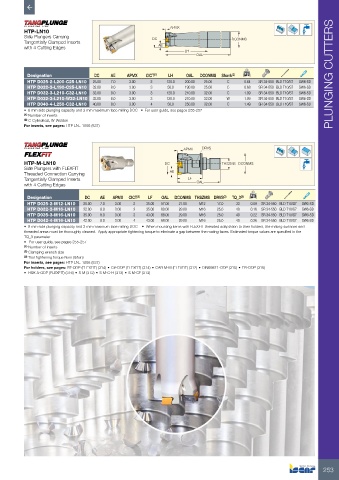

Page 255 - ISCAR(MILLINGCATALOG 38_2021)

APMX
HTP-LN10
Side Plungers Carrying DC DCONMS
Tangentially Clamped Inserts
with 4 Cutting Edges AE
LH
OAL

Designation DC AE APMX CICT (1) LH OAL DCONMS Shank (2) kg PLUNGING CUTTERS
HTP D025-2-L200-C25-LN10 25.00 7.0 3.00 2 120.0 200.00 25.00 C 0.64 SR 34-550 BLD T10/S7 SW6-SD
HTP D032-3-L190-C25-LN10 32.00 8.0 3.00 3 50.0 190.00 25.00 C 0.68 SR 34-550 BLD T10/S7 SW6-SD
HTP D032-3-L210-C32-LN10 32.00 8.0 3.00 3 120.0 210.00 32.00 C 1.09 SR 34-550 BLD T10/S7 SW6-SD
HTP D032-3-L210-W32-LN10 32.00 8.0 3.00 3 120.0 210.00 32.00 W 1.09 SR 34-550 BLD T10/S7 SW6-SD
HTP D040-4-L250-C32-LN10 40.00 8.0 3.00 4 50.0 250.00 32.00 C 1.49 SR 34-550 BLD T10/S7 SW6-SD
• 8 mm side plunging capacity and 3 mm maximum face milling DOC • For user guide, see pages 255-257
(1) Number of inserts
(2) C-Cylindrical, W-Weldon
For inserts, see pages: HTP LN.. 1006 (537)

APMX DRVS

HTP-M-LN10 DC THSZMS DCONMS
Side Plungers with FLEXFIT
Threaded Connection Carrying AE
Tangentially Clamped Inserts LF OAL
with 4 Cutting Edges

Designation DC AE APMX CICT (1) LF OAL DCONMS THSZMS DRVS (2) TQ_3 (3) kg
HTP D025-2-M12-LN10 25.00 7.0 3.00 2 35.00 57.00 21.00 M12 17.0 33 0.09 SR 34-550 BLD T10/S7 SW6-SD
HTP D032-3-M16-LN10 32.00 8.0 3.00 3 35.00 60.00 29.00 M16 25.0 40 0.16 SR 34-550 BLD T10/S7 SW6-SD
HTP D035-3-M16-LN10 35.00 8.0 3.00 3 43.00 68.00 29.00 M16 25.0 40 0.22 SR 34-550 BLD T10/S7 SW6-SD
HTP D042-4-M16-LN10 42.00 8.0 3.00 4 43.00 68.00 29.00 M16 25.0 40 0.26 SR 34-550 BLD T10/S7 SW6-SD
• 8 mm side plunging capacity and 3 mm maximum face milling DOC • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
• For user guide, see pages 255-257
(1) Number of inserts
(2) Clamping wrench size
(3) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HTP LN.. 1006 (537)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
