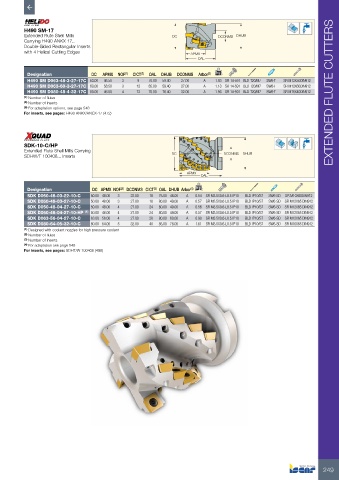

Page 251 - ISCAR(MILLINGCATALOG 38_2021)

H490 SM-17
Extended Flute Shell Mills DC DCONMS DHUB
Carrying H490 ANKX 17..
Double-Sided Rectangular Inserts
with 4 Helical Cutting Edges APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) kg
H490 SM D063-48-3-27-17C 63.00 46.50 3 9 70.00 59.40 27.00 A 1.93 SR 14-591 BLD T20/M7 SW6-T SR M12X50DIN912
H490 SM D063-60-3-27-17C 63.00 58.50 3 12 85.00 59.40 27.00 A 1.13 SR 14-591 BLD T20/M7 SW6-T SR M12X60DIN912
H490 SM D080-48-4-32-17C 80.00 46.50 4 12 70.00 76.40 32.00 A 1.56 SR 14-591 BLD T20/M7 SW6-T SR M16X40DIN912 EXTENDED FLUTE CUTTERS
(1) Number of flutes
(2) Number of inserts
(3) For adaptation options, see page 548
For inserts, see pages: H490 ANKX/ANCX-17 (472)

SDK-10-C/HP
Extended Flute Shell Mills Carrying
SDHW/T 100408... Inserts DC DCONMS DHUB

APMX
OAL
Designation DC APMX NOF (2) DCONMS CICT (3) OAL DHUB Arbor (4) kg
SDK D050-48-03-22-10-C 50.00 48.00 3 22.00 18 75.00 48.00 A 0.54 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M10X60DIN912
SDK D050-48-03-27-10-C 50.00 48.00 3 27.00 18 80.00 49.00 A 0.57 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912
SDK D050-48-04-27-10-C 50.00 48.00 4 27.00 24 80.00 49.00 A 0.56 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912
SDK D050-48-04-27-10-HP (1) 50.00 48.00 4 27.00 24 80.00 49.00 A 0.57 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912
SDK D063-56-04-27-10-C 63.00 56.00 4 27.00 28 80.00 60.00 A 0.90 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M12X65 DIN912
SDK D080-64-05-32-10-C 80.00 64.00 5 32.00 40 85.00 78.00 A 1.61 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD SR M16X65 DIN912
(1) Designed with coolant nozzles for high pressure coolant
(2) Number of flutes
(3) Number of inserts
(4) For adaptation see page 548
For inserts, see pages: SDHT/W 100408 (498)

249
