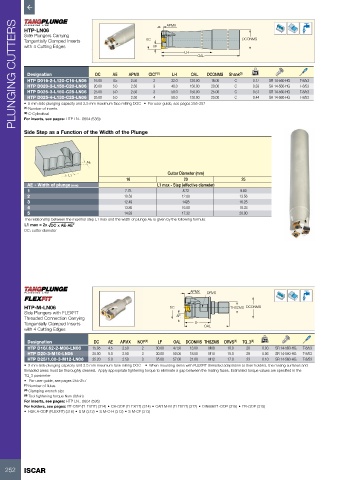

Page 254 - ISCAR(MILLINGCATALOG 38_2021)

PLUNGING CUTTERS
APMX

HTP-LN06
Side Plungers Carrying
Tangentially Clamped Inserts DC DCONMS
with 4 Cutting Edges AE
LH
OAL

Designation DC AE APMX CICT (1) LH OAL DCONMS Shank (2) kg
HTP D016-2-L120-C16-LN06 16.00 4.5 2.50 2 32.0 120.00 16.00 C 0.17 SR 14-560-HG T-8/53
HTP D020-3-L150-C20-LN06 20.00 5.0 2.50 3 40.0 150.00 20.00 C 0.33 SR 14-560-HG T-8/53
HTP D025-3-L150-C25-LN06 25.00 5.0 2.50 3 50.0 150.00 25.00 C 0.51 SR 14-560-HG T-8/53
HTP D025-4-L130-C25-LN06 25.00 5.0 2.50 4 50.0 130.00 25.00 C 0.44 SR 14-560-HG T-8/53
• 5 mm side plunging capacity and 2.5 mm maximum face milling DOC • For user guide, see pages 255-257
(1) Number of inserts
(2) C-Cylindrical
For inserts, see pages: HTP LN.. 0604 (536))
Side Step as a Function of the Width of the Plunge

AE
Cutter Diameter (mm)
L1
16 20 25
AE - Width of plunge (mm) L1 max - Step (effective diameter)
1 7.75 8.72 9.80
2 10.58 12.00 13.56
3 12.49 1428 16.25
4 13.86 16.00 18.33
5 14.83 17.32 20.00
The relationship between the maximal step L1 max and the width of plunge AE is given by the following formula:
L1 max = 2x √DC x AE-AE 2
DC: cutter diameter

APMX
DRVS

HTP-M-LN06 DC THSZMS DCONMS
Side Plungers with FLEXFIT
Threaded Connection Carrying AE
Tangentially Clamped Inserts LF OAL
with 4 Cutting Edges
Designation DC AE APMX NOF (1) LF OAL DCONMS THSZMS DRVS (2) TQ_3 (3) kg
HTP D16/.62-2-M08-LN06 15.95 4.5 2.50 2 30.00 47.50 13.00 M08 10.0 20 0.03 SR 14-560-HG T-8/53
HTP D20-3-M10-LN06 20.00 5.0 2.50 3 30.00 50.00 18.00 M10 15.0 29 0.06 SR 14-560-HG T-8/53
HTP D25/1.00-3-M12-LN06 25.20 5.0 2.50 3 35.00 57.00 21.00 M12 17.0 33 0.10 SR 14-560-HG T-8/53
• 5 mm side plunging capacity and 2.5 mm maximum face milling DOC • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and
threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the
TQ_3 parameter
• For user guide, see pages 255-257
(1) Number of flutes
(2) Clamping wrench size
(3) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: HTP LN.. 0604 (536)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
