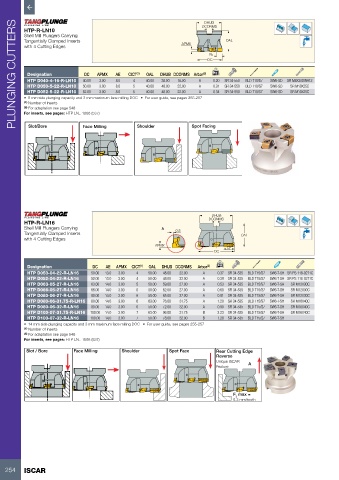

Page 256 - ISCAR(MILLINGCATALOG 38_2021)

PLUNGING CUTTERS
DHUB
DCONMS
HTP-R-LN10
Shell Mill Plungers Carrying
Tangentially Clamped Inserts APMX OAL
with 4 Cutting Edges
AE
DC

Designation DC APMX AE CICT (1) OAL DHUB DCONMS Arbor (2) kg
HTP D040-4-16-R-LN10 40.00 3.00 8.0 4 40.00 38.00 16.00 A 0.20 SR 34-550 BLD T10/S7 SW6-SD SR M8X30DIN912
HTP D050-5-22-R-LN10 50.00 3.00 8.0 5 40.00 48.00 22.00 A 0.31 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C
HTP D052-5-22-R-LN10 52.00 3.00 8.0 5 40.00 48.00 22.00 A 0.34 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C
• 8 mm side plunging capacity and 3 mm maximum face milling DOC • For user guide, see pages 255-257
(1) Number of inserts
(2) For adaptation see page 548
For inserts, see pages: HTP LN.. 1006 (537)

Slot/Bore Face Milling Shoulder Spot Facing

DHUB
DCONMS
HTP-R-LN16
Shell Mill Plungers Carrying A 0.5
Tangentially Clamped Inserts OAL
with 4 Cutting Edges
APMX
AE
DC

Designation DC AE APMX CICT (1) OAL DHUB DCONMS Arbor (2) kg
HTP D050-04-22-R-LN16 50.00 13.0 3.00 4 50.00 48.00 22.00 A 0.37 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C
HTP D052-04-22-R-LN16 52.00 13.0 3.00 4 50.00 48.00 22.00 A 0.39 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C
HTP D063-05-27-R-LN16 63.00 14.0 3.00 5 50.00 59.00 27.00 A 0.53 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C
HTP D066-05-27-R-LN16 66.00 14.0 3.00 5 50.00 62.00 27.00 A 0.60 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C
HTP D080-06-27-R-LN16 80.00 14.0 3.00 6 50.00 65.00 27.00 A 0.81 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C
HTP D080-06-31.75-R-LN16 80.00 14.0 3.00 6 63.00 76.00 31.75 A 1.20 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C
HTP D080-06-32-R-LN16 80.00 14.0 3.00 6 50.00 72.00 32.00 A 0.90 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C
HTP D100-07-31.75-R-LN16 100.00 14.0 3.00 7 63.00 96.00 31.75 B 2.23 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C
HTP D100-07-32-R-LN16 100.00 14.0 3.00 7 50.00 78.00 32.00 B 1.28 SR 34-535 BLD T15/S7 SW6-T-SH
• 14 mm side plunging capacity and 3 mm maximum face milling DOC • For user guide, see pages 255-257
(1) Number of inserts
(2) For adaptation see page 548
For inserts, see pages: HTP LN.. 1606 (537)
Slot / Bore Face Milling Shoulder Spot Face Rear Cutting Edge
Reverse
Unique ISCAR A
Feature

F max =
z
0.3 mm/tooth
