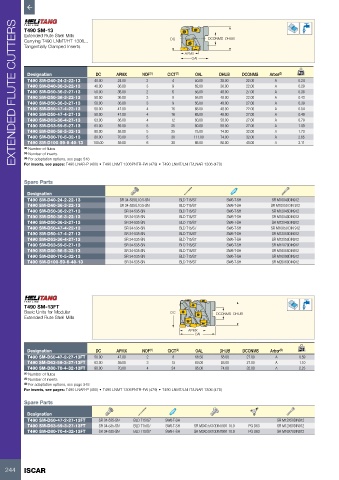

Page 246 - ISCAR(MILLINGCATALOG 38_2021)

EXTENDED FLUTE CUTTERS

T490 SM-13
Extended Flute Shell Mills
Carrying T490 LNMT/HT 1306... DC DCONMS DHUB
Tangentially Clamped Inserts
APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) kg
T490 SM-D40-24-2-22-13 40.00 24.00 2 4 50.00 38.00 22.00 A 0.24
T490 SM-D40-36-3-22-13 40.00 36.00 3 9 62.00 38.00 22.00 A 0.29
T490 SM-D50-36-2-27-13 50.00 36.00 2 6 56.00 48.00 27.00 A 0.38
T490 SM-D50-36-3-22-13 50.00 36.00 3 9 56.00 48.00 22.00 A 0.43
T490 SM-D50-36-3-27-13 50.00 36.00 3 9 56.00 48.00 27.00 A 0.39
T490 SM-D50-47-4-22-13 50.00 47.00 4 16 68.00 48.00 22.00 A 0.54
T490 SM-D50-47-4-27-13 50.00 47.00 4 16 68.00 48.00 27.00 A 0.49
T490 SM-D63-36-4-27-13 63.00 36.00 4 12 60.00 58.00 27.00 A 0.79
T490 SM-D63-59-5-27-13 63.00 59.00 5 25 80.00 58.00 27.00 A 1.09
T490 SM-D80-58-5-32-13 80.00 58.00 5 25 75.00 74.00 32.00 A 1.73
T490 SM-D80-70-5-32-13 80.00 70.00 5 30 111.00 74.00 32.00 A 2.65
T490 SM-D100-59-6-40-13 100.00 59.00 6 30 86.00 88.00 40.00 A 3.11
(2) Number of flutes
(3) Number of inserts
(4) For adaptation options, see page 548
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Spare Parts

Designation
T490 SM-D40-24-2-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912
T490 SM-D40-36-3-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912
T490 SM-D50-36-2-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912
T490 SM-D50-36-3-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912
T490 SM-D50-36-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912
T490 SM-D50-47-4-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912
T490 SM-D50-47-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912
T490 SM-D63-36-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912
T490 SM-D63-59-5-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X70DIN912
T490 SM-D80-58-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X55DIN912
T490 SM-D80-70-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X90DIN912
T490 SM-D100-59-6-40-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M20X60DIN912

T490 SM-13FT
Basic Units for Modular DC DCONMS DHUB
Extended Flute Shell Mills

APMX
OAL

Designation DC APMX NOF (1) CICT (2) OAL DHUB DCONMS Arbor (3) kg
T490 SM-D50-47-2-27-13FT 50.00 47.00 2 8 66.50 58.00 27.00 A 0.59
T490 SM-D63-59-3-27-13FT 63.00 59.00 3 15 80.00 58.00 27.00 A 1.10
T490 SM-D80-70-4-32-13FT 80.00 70.00 4 24 95.00 74.00 32.00 A 2.23
(1) Number of flutes
(2) Number of inserts
(3) For adaptation options, see page 548
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Spare Parts
Designation
T490 SM-D50-47-2-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912
T490 SM-D63-59-3-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M12X60DIN912
T490 SM-D80-70-4-32-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M16X70DIN912

244 ISCAR
