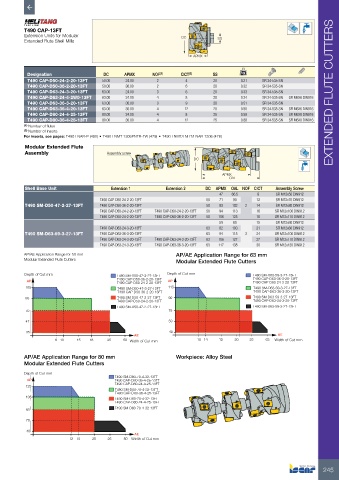

Page 247 - ISCAR(MILLINGCATALOG 38_2021)

T490 CAP-13FT
Extension Units for Modular DC SS
Extended Flute Shell Mills

APMX

Designation DC APMX NOF (1) CICT (2) SS kg
T490 CAP-D50-24-2-20-13FT 50.00 24.00 2 4 20 0.21 SR 34-535-SN
T490 CAP-D50-36-2-20-13FT 50.00 36.00 2 6 20 0.32 SR 34-535-SN
T490 CAP-D63-24-3-20-13FT 63.00 24.00 3 6 20 0.33 SR 34-535-SN EXTENDED FLUTE CUTTERS
T490 CAP-D63-24-4-2W0-13FT 63.00 24.00 4 8 20 0.34 SR 34-535-SN SR M6X6 DIN916
T490 CAP-D63-36-3-20-13FT 63.00 36.00 3 9 20 0.51 SR 34-535-SN
T490 CAP-D63-36-4-20-13FT 63.00 36.00 4 12 20 0.50 SR 34-535-SN SR M6X6 DIN916
T490 CAP-D80-24-4-25-13FT 80.00 24.00 4 8 25 0.59 SR 34-535-SN SR M6X8 DIN916
T490 CAP-D80-36-4-25-13FT 80.00 36.00 4 12 25 0.88 SR 34-535-SN SR M6X8 DIN916
(1) Number of flutes
(2) Number of inserts
For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478)

Modular Extended Flute
Assembly Assembly screw
DC

APMX
OAL
Shell Base Unit Extension 1 Extension 2 DC APMX OAL NOF CICT Assembly Screw
47 66.5 8 SR M12x50 DIN912
T490 CAP-D50-24-2-20-13FT 50 71 90 12 SR M12x70 DIN912
T490 SM-D50-47-2-27-13FT T490 CAP-D50-36-2-20-13FT 50 83 102 2 14 SR M12x80 DIN912
T490 CAP-D50-24-2-20-13FT T490 CAP-D50-24-2-20-13FT 50 94 113 16 SR M12x100 DIN912
T490 CAP-D50-24-2-20-13FT T490 CAP-D50-36-2-20-13FT 50 106 125 18 SR M12x110 DIN912
59 80 15 SR M12x60 DIN912
T490 CAP-D63-24-3-20-13FT 63 82 103 21 SR M12x80 DIN912
T490 SM-D63-59-3-27-13FT T490 CAP-D63-36-3-20-13FT 63 94 115 3 24 SR M12x100 DIN912
T490 CAP-D63-24-3-20-13FT T490 CAP-D63-24-3-20-13FT 63 106 127 27 SR M12x110 DIN912
T490 CAP-D63-24-3-20-13FT T490 CAP-D63-36-3-20-13FT 63 117 138 30 SR M12x120 DIN912
AP/AE Application Range for 50 mm AP/AE Application Range for 63 mm
Modular Extended Flute Cutters
Modular Extended Flute Cutters

Depth of Cut mm T490 SM-D50-47-3-27-13FT Depth of Cut mm T490 SM-D63-59-3-27-13FT
AP T490 CAP-D50-36-2-20-13FT AP T490 CAP-D63-36-3-20-13FT
T490 CAP-D63-24-3-20-13FT
T490 CAP-D50-24-2-20-13FT
105 T490 SM-D50-47-3-27-13FT 115 T490 SM-D63-59-3-27-13FT
T490 CAP-D50-36-2-20-13FT T490 CAP-D63-36-3-20-13FT
83 T490 SM-D50-47-2-27-13FT 90 T490 SM-D63-59-3-27-13FT
T490 CAP-D50-24-2-20-13FT T490 CAP-D63-24-3-20-13FT
T490 SM-D50-47-2-27-13FT T490 SM-D63-59-3-27-13FT
70 75
47 59
35 40
AE AE
8 10 15 18 25 50 Width of Cut mm 10 14 15 20 25 63 Width of Cut mm

AP/AE Application Range for 80 mm Workpiece: Alloy Steel
Modular Extended Flute Cutters
Depth of Cut mm
T490 SM-D80-70-4-32-13FT
AP T490 CAP-D80-36-4-25-13FT
T490 CAP-D80-24-4-25-13FT
125
T490 SM-D80-70-4-32-13FT
T490 CAP-D80-36-4-25-13FT
105 T490 SM-D80-70-4-32-13FT
T490 CAP-D80-24-4-25-13FT
93 T490 SM-D80-70-4-32-13FT
70
40
AE
12 15 20 25 50 Width of Cut mm
