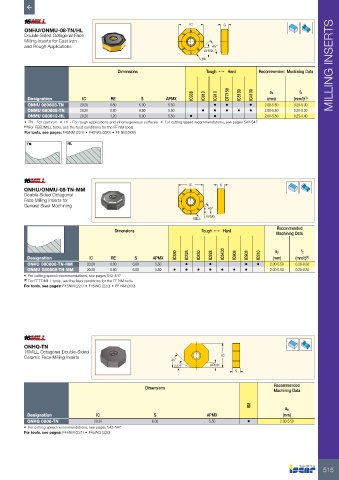

Page 517 - ISCAR(MILLINGCATALOG 38_2021)

IC S
ONHU/ONMU-08-TN/HL
Double-Sided Octagonal Face
Milling Inserts for Cast Iron
and Rough Applications 45°
APMX
RE

Dimensions Tough 1 Hard Recommended Machining Data MILLING INSERTS

IC908 IC810 IC910 DT7150 IC5100 IC4100 ap fz
Designation IC RE S APMX (mm) (mm/t) (1)
ONHU 080608-TN 20.20 0.80 6.00 5.50 • • • 2.00-5.50 0.20-0.30
ONMU 080608-TN 20.20 0.80 6.00 5.50 • • • • • 2.00-5.50 0.20-0.30
ONMU 080612-HL 20.20 1.20 6.00 5.50 • • 2.00-5.50 0.25-0.40
• TN - For cast iron • HL - For rough applications and inhomogeneous surfaces • For cutting speed recommendations, see pages 542-547
(1) For FEEDMILL tools, see the feed conditions for the FF NM tools
For tools, see pages: F45NM (221) • F45WG (220) • FF NM (309)

TN HL

IC S

ONHU/ONMU-08-TN-MM
Double-Sided Octagonal
Face Milling Inserts for
General Steel Machining
45°
RE APMX
Recommended
Dimensions Tough 1 Hard
Machining Data

IC330 IC328 IC830 IC928 IC5400 IC808 IC908 IC910 ap fz
Designation IC RE S APMX (mm) (mm/t) (1)
ONHU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • 2.00-5.50 0.20-0.30
ONMU 080608-TN-MM 20.20 0.80 6.00 5.50 • • • • • • • 2.00-5.50 0.20-0.30
• For cutting speed recommendations, see pages 542-547
(1) For FEEDMILL tools, see the feed conditions for the FF NM tools
For tools, see pages: F45NM (221) • F45WG (220) • FF NM (309)

ONHQ-TN
16MILL Octagonal Double-Sided
Ceramic Face Milling Inserts IC
45˚
22.5˚ APMX
S

Recommended
Dimensions
Machining Data
IS8
ap
Designation IC S APMX (mm)
ONHQ 0806-TN 20.20 6.00 5.50 • 2.00-5.50
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45NM (221) • F45WG (220)

515
