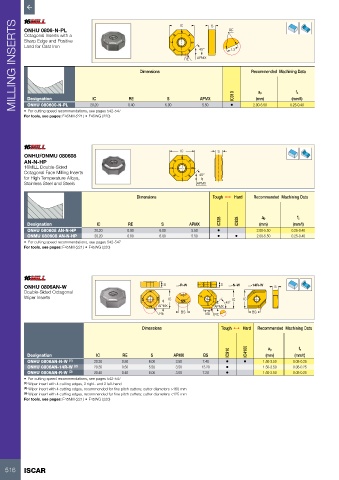

Page 518 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS ONHU 0806-N-PL Dimensions IC RE APMX S RE Recommended Machining Data
Octagonal Inserts with a
Sharp Edge and Positive
Land for Cast Iron
1.3
45°

fz
ap
RE
IC
Designation
(mm)
(mm/t)
S
ONHU 080600-N-PL
20.20
5.50
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45NM (221) • F45WG (220) 0.40 6.00 APMX • IC910 2.00-5.50 0.25-0.40

ONHU/ONMU 080608 IC S
AN-N-HP
16MILL Double-Sided
Octagonal Face Milling Inserts 45°
for High Temperature Alloys,
Stainless Steel and Steels APMX
Dimensions Tough 1 Hard Recommended Machining Data

IC328 IC928 ap fz
Designation IC RE S APMX (mm) (mm/t)
ONHU 080608 AN-N-HP 20.20 0.80 6.00 5.50 • 2.00-5.50 0.25-0.40
ONMU 080608 AN-N-HP 20.20 0.80 6.00 5.50 • • 2.00-5.50 0.25-0.40
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45NM (221) • F45WG (220)

ONHU 0806AN-W S ...-R-W S ...-N-W ...-14R-W S
Double-Sided Octagonal
Wiper Inserts IC L IC IC
APMX R APMX 45˚
RE BS BS RE BS

Dimensions Tough 1 Hard Recommended Machining Data

IC910 IC4100 ap fz
Designation IC RE S APMX BS (mm) (mm/t)
ONHU 0806AN-N-W (1) 20.30 0.50 6.00 3.50 7.40 • • 1.50-3.50 0.08-0.25
ONHU 0806AN-14R-W (2) 20.35 0.50 5.50 3.50 13.20 • 1.50-3.50 0.08-0.25
ONHU 0806AN-R-W (3) 20.40 0.40 6.00 3.50 7.20 • 1.50-3.50 0.08-0.25
• For cutting speed recommendations, see pages 542-547
(1) Wiper insert with 4 cutting edges, 2 right- and 2 left-hand
(2) Wiper insert with 4 cutting edges, recommended for fine pitch cutters; cutter diameters >160 mm
(3) Wiper insert with 4 cutting edges, recommended for fine pitch cutters; cutter diameters <125 mm
For tools, see pages: F45NM (221) • F45WG (220)

516 ISCAR
