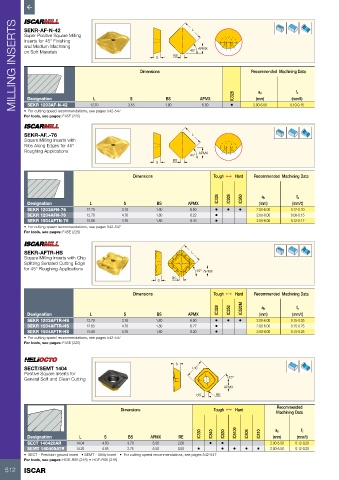

Page 514 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS SEKR-AF-N-42 Dimensions BS 45° APMX Recommended Machining Data
L
Super Positive Square Milling

Inserts for 45° Finishing
and Medium Machining
on Soft Materials
S

fz
ap
(mm)
BS
Designation
L
S
(mm/t)
6.50
SEKR 1203AF-N-42
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225) 12.70 3.18 1.80 APMX • IC328 2.00-6.00 0.10-0.15

SEKR-AF..-76 L
Square Milling Inserts with
Ribs Along Edges for 45°
Roughing Applications
45° APMX
BS
S
Dimensions Tough 1 Hard Recommended Machining Data
IC328 IC928 IC950 ap fz
Designation L S BS APMX (mm) (mm/t)
SEKR 1203AFN-76 12.70 3.18 1.80 6.50 • • • 2.00-6.00 0.12-0.20
SEKR 1204AFN-76 12.70 4.76 1.80 6.22 • 2.00-6.00 0.08-0.15
SEKR 1504AFTN-76 15.88 4.76 1.80 8.43 • 2.00-6.00 0.12-0.17
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225)

SEKR-AFTR-HS L
Square Milling Inserts with Chip
Splitting Serrated Cutting Edge
for 45° Roughing Applications 45° APMX
BS
S

Dimensions Tough 1 Hard Recommended Machining Data

IC328 IC250 IC520M ap fz
Designation L S BS APMX (mm) (mm/t)
SEKR 1203AFTR-HS 12.70 3.18 1.80 6.50 • • • 2.00-6.00 0.15-0.25
SEKR 1204AFTR-HS 12.63 4.76 1.80 6.27 • 2.00-6.00 0.15-0.25
SEKR 1504AFTR-HS 15.88 4.76 1.80 8.30 • 2.00-6.00 0.15-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: F45E (225)

SECT/SEMT 1404 S L/IC
Positive Square Inserts for
General Soft and Clean Cutting 45°
APMX
BS RE

Recommended
Dimensions Tough 1 Hard
Machining Data

IC330 IC840 IC830 IC5400 IC808 IC810 ap fz
Designation L S BS APMX RE (mm) (mm/t)
SECT 140420AR 14.04 4.50 3.70 5.50 2.00 • • 2.00-5.50 0.12-0.20
SEMT 140405ATR 14.20 4.95 2.75 5.50 0.50 • • • • • 2.00-5.50 0.12-0.20
• SECT - Precision ground insert • SEMT - Utility insert • For cutting speed recommendations, see pages 542-547
For tools, see pages: HOE-R06 (218) • HOF-R06 (218)
