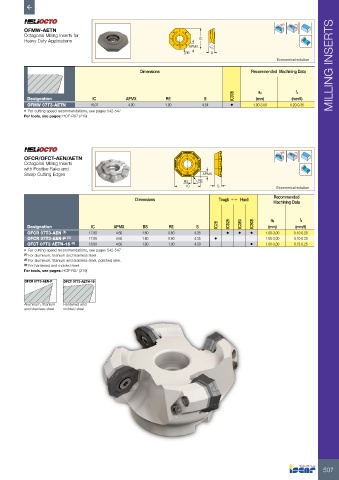

Page 509 - ISCAR(MILLINGCATALOG 38_2021)

Rd°
OFMW-AETN
Octagonal Milling Inserts for
Heavy Duty Applications IC
APMX
RE S
Economical solution
Dimensions Recommended Machining Data MILLING INSERTS

IC908 ap fz
Designation IC APMX RE S (mm) (mm/t)
OFMW 07T3-AETN 18.07 4.00 1.00 4.54 • 1.00-3.00 0.20-0.35
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HOF-R07 (219)

Rd°
OFCR/OFCT-AEN/AETN 3 4 5
Octagonal Milling Inserts 2 6
with Positive Rake and 1 7
Sharp Cutting Edges 8 APMX
BS RE
IC S Economical solution
Recommended
Dimensions Tough 1 Hard Machining Data

fz
ap
Designation IC APMX BS RE S IC28 IC928 IC380 IC908 (mm) (mm/t)
OFCR 07T3-AEN (1) 17.80 4.60 1.60 0.60 4.35 • • • 1.00-3.00 0.10-0.20
OFCR 07T3-AEN-P (2) 17.80 4.60 1.60 0.60 4.35 • 1.00-3.00 0.10-0.20
OFCT 07T3 AETN-16 (3) 18.00 4.60 1.60 1.00 4.50 • 1.00-3.00 0.15-0.25
• For cutting speed recommendations, see pages 542-547
(1) For aluminum, titanium and stainless steel
(2) For aluminum, titanium and stainless steel, polished rake.
(3) For hardened and molded steel.
For tools, see pages: HOF-R07 (219)
OFCR 07T3-AEN-P OFCT 07T3-AETN-16

Aluminum, titanium Hardened and
and stainless steel molded steel
