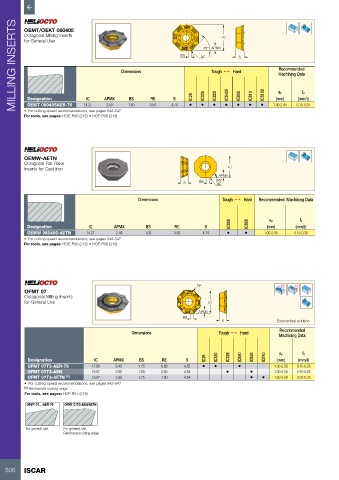

Page 508 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS OEMT/OEKT 060405 Dimensions BS RE 45° APMX IC S Machining Data
Octagonal Milling Inserts
for General Use

Recommended
Tough 1 Hard

fz
ap
(mm/t)
RE
BS
IC
(mm)
Designation
APMX
S
2.50
OEMT 060405AER-76
14.27
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HOE-R06 (218) • HOF-R06 (218) 1.60 0.50 4.74 • IC28 • IC330 • IC830 • IC5400 • IC808 • IC810 • IC5100 1.00-2.45 0.15-0.25

OEMW-AETN
Octagonal Flat Rake
Inserts for Cast Iron IC
APMX
S BS 45°
RE
Dimensions Tough 1 Hard Recommended Machining Data

IC928 IC808 ap fz
Designation IC APMX BS RE S (mm) (mm/t)
OEMW 060405-AETN 14.27 2.45 1.05 0.50 4.74 • • 1.00-2.45 0.15-0.30
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HOE-R06 (218) • HOF-R06 (218)

RE Rd°
OFMT 07
Octagonal Milling Inserts
for General Use IC
APMX
BS
S Economical solution
Recommended
Dimensions Tough 1 Hard
Machining Data

fz
ap
Designation IC APMX BS RE S IC28 IC330 IC328 IC830 IC928 IC910 (mm) (mm/t)
OFMT 07T3-AER-76 17.80 3.40 1.75 0.60 4.55 • • • 1.00-3.00 0.15-0.25
OFMT 07T3-AEN 18.07 3.90 1.60 0.60 4.54 • • 1.00-3.00 0.15-0.25
OFMT 07T3-AETN (1) 18.07 3.90 1.75 1.00 4.54 • • 1.00-3.00 0.20-0.35
• For cutting speed recommendations, see pages 542-547
(1) Reinforced cutting edge
For tools, see pages: HOF-R07 (219)
OFMT 07...-AER-76 OFMT 07T3-AEN/AETN

For general use For general use
Reinforced cutting edge

506 ISCAR
