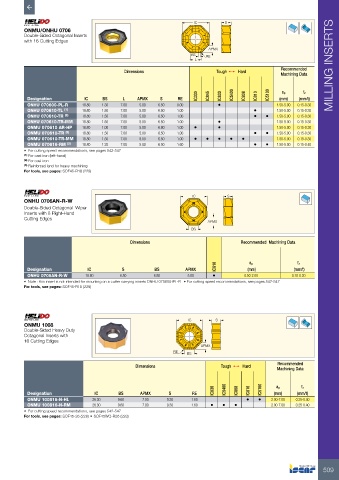

IC S
ONMU/ONHU 0706
Double-Sided Octagonal Inserts
with 16 Cutting Edges
APMX
BS RE
L
Dimensions Tough 1 Hard Recommended MILLING INSERTS
Machining Data

IC330 IC845 IC830 IC5400 IC808 IC810 IC5100 ap fz
Designation IC BS L APMX S RE (mm) (mm/t)
ONHU 070600-PL-R 18.80 1.30 7.00 5.00 6.50 0.00 • 1.50-5.00 0.15-0.30
ONHU 070610-TL (1) 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30
ONHU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30
ONHU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • 1.50-5.00 0.15-0.30
ONMU 070610 AR-HP 18.80 1.00 7.00 5.00 6.80 1.00 • • 1.50-5.00 0.15-0.30
ONMU 070610-TR (2) 18.80 1.50 7.00 5.00 6.50 1.00 • • 1.50-5.00 0.15-0.30
ONMU 070610-TR-MM 18.80 1.50 7.00 5.00 6.50 1.00 • • • • • 1.50-5.00 0.15-0.30
ONMU 070616-RM (3) 18.80 1.20 7.00 5.00 6.50 1.60 • • 1.50-5.00 0.15-0.40
• For cutting speed recommendations, see pages 542-547
(1) For cast iron (left-hand)
(2) For cast iron
(3) Reinforced land for heavy machining
For tools, see pages: SOF45-R18 (229)

IC S
ONHU 0706AN-R-W
Double-Sided Octagonal Wiper
Inserts with 8 Right-Hand
Cutting Edges
APMX
BS
Dimensions Recommended Machining Data

IC810 ap fz
Designation IC S BS APMX (mm) (mm/t)
ONHU 0706AN-R-W 18.80 6.50 6.80 5.00 • 0.50-2.00 0.10-0.20
• Note : this insert is not intended for mounting on a cutter carrying inserts ONHU 070600-PL-R • For cutting speed recommendations, see pages 542-547
For tools, see pages: SOF45-R18 (229)

IC S
ONMU 1008
Double-Sided Heavy Duty
Octagonal Inserts with
16 Cutting Edges
APMX
RE BS
Recommended
Dimensions Tough 1 Hard
Machining Data

IC830 IC5400 IC808 IC810 IC5100 ap fz
Designation IC BS APMX S RE (mm) (mm/t)
ONMU 100816-N-HL 26.30 9.60 7.00 9.30 1.60 • • 2.00-7.00 0.25-0.40
ONMU 100816-N-RM 26.30 9.60 7.00 9.30 1.60 • • • 2.00-7.00 0.25-0.40
• For cutting speed recommendations, see pages 542-547
For tools, see pages: SOF45-26 (228) • SOF45WG-R26 (228)
