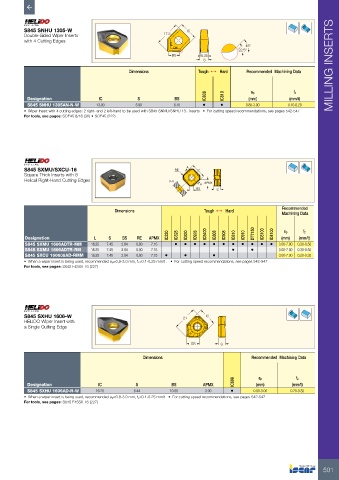

S845 SNHU 1305-W IC
Double-Sided Wiper Inserts 17.3
with 4 Cutting Edges
45°
22.5°
BS 5.35
S
Dimensions Tough 1 Hard Recommended Machining Data MILLING INSERTS

IC808 IC810 ap fz
Designation IC S BS (mm) (mm/t)
S845 SNHU 1305AN-N-W 13.00 5.90 8.10 • • 0.80-3.00 0.10-0.20
• Wiper insert with 4 cutting edges: 2 right- and 2 left-hand to be used with S845 SNMU/SNHU 13.. inserts • For cutting speed recommendations, see pages 542-547
For tools, see pages: SOE45 8/16 (38) • SOF45 (222)

S845 SXMU/SXCU-16 RE A IC
Square Thick Inserts with 8
Helical Right-Hand Cutting Edges A-A
A APMX
BS S

Recommended
Dimensions Tough 1 Hard
Machining Data

IC330 IC328 IC830 IC928 IC5400 IC808 IC908 IC810 IC910 DT7150 IC5100 IC4100 ap fz
Designation L S BS RE APMX (mm) (mm/t)
S845 SXMU 1606ADTR-MM 16.35 7.45 2.84 0.80 7.15 • • • • • • • • • • • 3.00-7.00 0.30-0.50
S845 SXMU 1606ADTR-RM 16.35 7.45 2.84 0.80 7.15 • • 3.00-7.00 0.30-0.50
S845 SXCU 160608AD-RMM 16.35 7.45 2.84 0.80 7.15 • • • 3.00-7.00 0.20-0.35
• When a wiper insert is being used, recommended ap=0.8-3.0 mm, fz=0.1-0.25 mm/t . • For cutting speed recommendations, see pages 542-547
For tools, see pages: S845 F45SX-16 (227)

S845 SXHU 1606-W 21 IC
HELIDO Wiper Insert with
a Single Cutting Edge

BS S

Dimensions Recommended Machining Data

IC808 ap fz
Designation IC S BS APMX (mm) (mm/t)
S845 SXHU 1606AD-R-W 16.20 6.44 10.00 3.00 • 0.80-3.00 0.20-0.35
• When a wiper insert is being used, recommended ap=0.8-3.0 mm, fz=0.1-0.25 mm/t • For cutting speed recommendations, see pages 542-547
For tools, see pages: S845 F45SX-16 (227)

501
