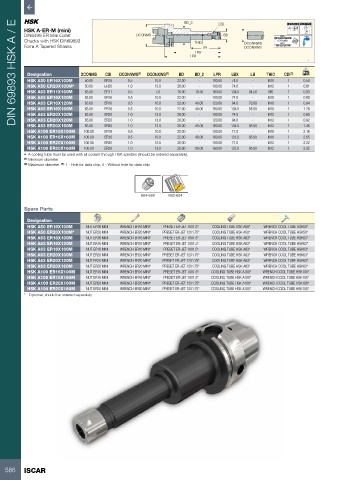

Page 588 - ISCAR(MILLINGCATALOG 38_2021)

BD_2 CSI A 0.003 A 58-60 HRc
DIN 69893 HSK A / E
HSK A-ER-M (mini)
DIN6499 ER Mini Collet DCONMS BD G2.5
Chucks with HSK DIN69893 THID DCONNWS HSK 40,50,63=20,000RPM
U<1.0 gmm
G6.3
Form A Tapered Shanks LB DCONXWS HSK 100=12,000 RPM
LBX
LPR
.
Designation DCONMS CSI DCONNWS (1) DCONXWS (2) BD BD_2 LPR LBX LB THID CDI (3) kg
HSK A50 ER16X100M 50.00 ER16 0.5 10.0 22.00 - 100.00 74.0 - M10 1 0.50
HSK A50 ER20X100M* 50.00 ER20 1.0 13.0 28.00 - 100.00 74.0 - M12 1 0.61
HSK A63 ER11X160M 63.00 ER11 0.5 7.0 16.00 19.50 160.00 134.0 94.50 M6 1 0.93
HSK A63 ER16X100M 63.00 ER16 0.5 10.0 22.00 - 100.00 74.0 - M10 1 0.80
HSK A63 ER16X120M 63.00 ER16 0.5 10.0 22.00 40.00 120.00 94.0 78.00 M10 1 0.94
HSK A63 ER16X160M 63.00 ER16 0.5 10.0 22.00 40.00 160.00 134.0 85.00 M10 1 1.26
HSK A63 ER20X100M 63.00 ER20 1.0 13.0 28.00 - 100.00 74.0 - M12 1 0.85
HSK A63 ER20X120M 63.00 ER20 1.0 13.0 28.00 - 120.00 94.0 - M12 1 0.92
HSK A63 ER20X160M 63.00 ER20 1.0 13.0 28.00 45.00 160.00 134.0 85.00 M12 1 1.46
HSK A100 ER16X100M 100.00 ER16 0.5 10.0 22.00 - 100.00 71.0 - M10 1 2.16
HSK A100 ER16X160M 100.00 ER16 0.5 10.0 22.00 40.00 160.00 131.0 85.00 M10 1 2.65
HSK A100 ER20X100M 100.00 ER20 1.0 13.0 28.00 - 100.00 71.0 - M12 1 2.22
HSK A100 ER20X160M 100.00 ER20 1.0 13.0 28.00 50.00 160.00 131.0 85.00 M12 1 2.82
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
(1) Minimum diameter
(2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip

684-688 682-684

Spare Parts

Designation
HSK A50 ER16X100M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 ER20X100M* NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A63 ER16X100M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 ER16X120M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 ER16X160M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 ER20X100M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 ER20X120M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 ER20X160M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A100 ER16X100M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 ER16X160M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 ER20X100M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 ER20X160M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
* Optional, should be ordered separately
