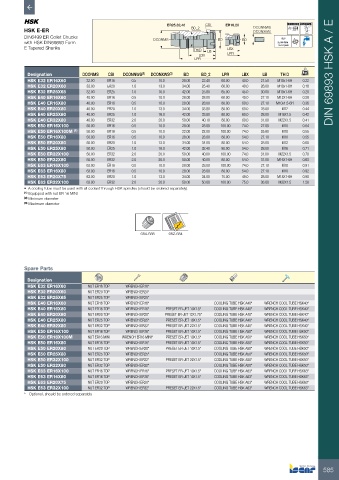

ER25,32,40 CSI ER16,20 A 0.003 A 58-60 HRc
HSK E-ER BD_2 DCONNWS
DCONXWS
DIN6499 ER Collet Chucks DCONMS BD BD G2.5
with HSK DIN69893 Form 25,000 RPM
E Tapered Shanks THID LB LBX U<1.0 gmm
LBX LPR
LPR
Designation DCONMS CSI DCONNWS (2) DCONXWS (3) BD BD_2 LPR LBX LB THID kg DIN 69893 HSK A / E
HSK E32 ER16X60 32.00 ER16 0.5 10.0 28.00 22.40 60.00 40.0 21.50 M10x1-6H 0.22
HSK E32 ER20X60 32.00 ER20 1.0 13.0 34.00 25.40 60.00 40.0 26.00 M10x1-6H 0.18
HSK E32 ER25X65 32.00 ER25 1.0 16.0 42.00 25.80 65.00 45.0 30.00 M10x1-6H 0.20
HSK E40 ER16X60 40.00 ER16 0.5 10.0 28.00 28.00 60.00 40.0 27.10 M12X1-6H 0.28
HSK E40 ER16X80 40.00 ER16 0.5 10.0 28.00 28.00 80.00 60.0 27.10 M10x1.5-6H 0.36
HSK E40 ER20X80 40.00 ER20 1.0 13.0 34.00 33.80 80.00 60.0 28.00 M12 0.44
HSK E40 ER25X80 40.00 ER25 1.0 16.0 42.00 33.80 80.00 60.0 28.00 M18X1.5 0.42
HSK E40 ER32X80 40.00 ER32 2.0 20.0 50.00 40.10 80.00 60.0 31.00 M22X1.5 0.41
HSK E50 ER16X100 50.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.00 M10 0.64
HSK E50 ER16X100M (1) 50.00 ER16 0.5 10.0 22.00 22.00 100.00 74.0 25.60 M10 0.55
HSK E50 ER16X80 50.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0.55
HSK E50 ER20X80 50.00 ER20 1.0 13.0 34.00 34.00 80.00 54.0 28.00 M12 0.60
HSK E50 ER25X80 50.00 ER25 1.0 16.0 42.00 32.40 80.00 54.0 28.00 M16 0.71
HSK E50 ER32X100 50.00 ER32 2.0 20.0 50.00 40.00 100.00 74.0 31.00 M22X1.5 0.78
HSK E50 ER32X80 50.00 ER32 2.0 20.0 50.00 40.00 80.00 54.0 31.00 M16X1-6H 0.63
HSK E63 ER16X100 63.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.10 M10 0.91
HSK E63 ER16X80 63.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0.92
HSK E63 ER20X75 63.00 ER20 1.0 13.0 34.00 34.00 75.00 49.0 28.00 M18X1-6H 0.90
HSK E63 ER32X100 63.00 ER32 2.0 20.0 50.00 50.00 100.00 75.0 36.00 M22X1.5 1.28
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
(1) Equipped with nut ER 16 MINI
(2) Minimum diameter
(3) Maximum diameter
684-688 682-684
Spare Parts
Designation
HSK E32 ER16X60 NUT ER16 TOP WRENCH ER16*
HSK E32 ER20X60 NUT ER20 TOP WRENCH ER20*
HSK E32 ER25X65 NUT ER25 TOP WRENCH ER25*
HSK E40 ER16X60 NUT ER16 TOP WRENCH ER16* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 ER20X80 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 ER25X80 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 18X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 ER32X80 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E50 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER16X100M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER20X80 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER25X80 NUT ER25 TOP WRENCH ER25* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 ER32X80 NUT ER32 TOP WRENCH ER32* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E63 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK E63 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK E63 ER20X75 NUT ER20 TOP WRENCH ER20* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK E63 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
* Optional, should be ordered separately
