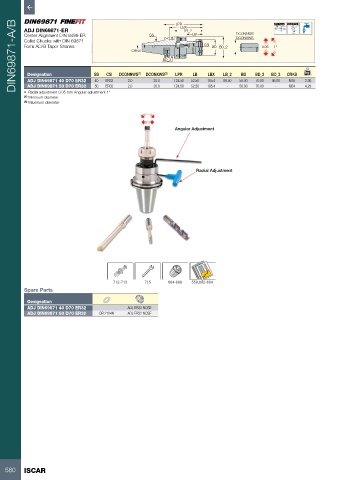

Page 582 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B Designation SS CSI DCONNWS (1) DCONXWS BD_3 LPR LBX LB CSI LBX LB_2 DCONNWS BD_2 0.05 BD_3 CRKS kg
LPR
AT3 Taper
58-60 HRc
ADJ DIN69871-ER
LB_2
Center Alignment DIN 6499 ER
SS
DCONXWS
Collet Chucks with DIN 69871
Form AD/B Taper Shanks
1°
BD BD_2
CRKS
(2)
LB
BD
ADJ DIN69871 40 D70 ER32
ADJ DIN69871 50 D70 ER32
52.50
M24
50.00
4.29
105.4
124.50
70.00
2.0
50
ER32
-
20.0
-
• Radial adjustment 0.05 mm Angular adjustment 1°
(1) Minimum diameter 40 ER32 2.0 20.0 124.50 52.50 105.4 89.50 50.00 70.00 46.00 M16 2.36
(2) Maximum diameter
Angular Adjustment
Radial Adjustment

712-713 715 684-688 558,682-684

Spare Parts

Designation
ADJ DIN69871 40 D70 ER32 ADJ ER32 NOSE
ADJ DIN69871 50 D70 ER32 OR 21X4N ADJ ER32 NOSE
