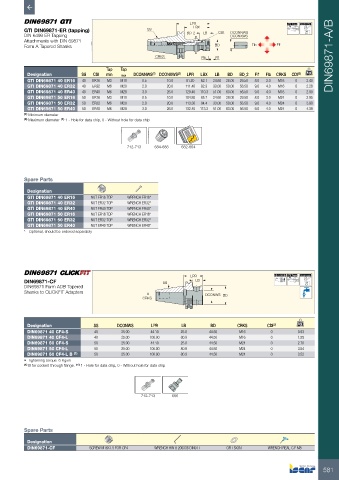

LPR
LBX AT3 Taper 58-60 HRc

GTI DIN69871-ER (tapping) SS CSI DCONNWS

DIN 6499 ER Tapping BD_2 LB DCONXWS
Attachments with DIN 69871
Form A Tapered Shanks BD Flb Flf
CRKS Flb Flf DIN69871-A/B

Tap Tap
Designation SS CSI min max DCONNWS (1) DCONXWS (2) LPR LBX LB BD BD_2 Flf Flb CRKS CDI (3) kg
GTI DIN69871 40 ER16 40 ER16 M3 M10 0.5 10.0 81.20 62.1 24.60 28.00 29.50 8.0 3.0 M16 0 2.40
GTI DIN69871 40 ER32 40 ER32 M6 M20 2.0 20.0 111.40 92.3 33.00 50.00 56.50 9.0 4.0 M16 0 2.28
GTI DIN69871 40 ER40 40 ER40 M6 M28 3.0 26.0 129.40 110.3 51.00 63.00 56.50 9.0 4.0 M16 0 2.90
GTI DIN69871 50 ER16 50 ER16 M3 M10 0.5 10.0 104.80 85.7 24.60 28.00 29.50 8.0 3.0 M24 0 2.95
GTI DIN69871 50 ER32 50 ER32 M6 M20 2.0 20.0 113.30 94.4 33.00 50.00 56.50 9.0 4.0 M24 0 3.90
GTI DIN69871 50 ER40 50 ER40 M6 M28 3.0 26.0 132.40 113.3 51.00 63.00 56.50 9.0 4.0 M24 0 4.39
(1) Minimum diameter
(2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713 684-688 682-684

Spare Parts
Designation
GTI DIN69871 40 ER16 NUT ER16 TOP WRENCH ER16*
GTI DIN69871 40 ER32 NUT ER32 TOP WRENCH ER32*
GTI DIN69871 40 ER40 NUT ER40 TOP WRENCH ER40*
GTI DIN69871 50 ER16 NUT ER16 TOP WRENCH ER16*
GTI DIN69871 50 ER32 NUT ER32 TOP WRENCH ER32*
GTI DIN69871 50 ER40 NUT ER40 TOP WRENCH ER40*
* Optional, should be ordered separately

LPR A 0.003 A AT3 Taper 58-60 HRc
DIN69871-CF SS LB
DIN69871 Form ADB Tapered
Shanks to CLICKFIT Adapters
DCONWS BD
CRKS

Designation SS DCONWS LPR LB BD CRKS CDI (2) kg
DIN69871 40 CF4-S 40 25.00 44.10 25.0 44.50 M16 0 0.93
DIN69871 40 CF4-L 40 25.00 100.00 80.9 44.50 M16 0 1.55
DIN69871 50 CF4-S 50 25.00 44.10 25.0 44.50 M24 0 2.70
DIN69871 50 CF4-L 50 25.00 100.00 80.9 44.50 M24 0 3.54
DIN69871 50 CF4-L B (1) 50 25.00 100.00 80.9 44.50 M24 0 3.52
• Tightening torque: 6 Kgxm
(1) B for coolant through flange. (1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713 666

Spare Parts
Designation
DIN69871-CF SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8
