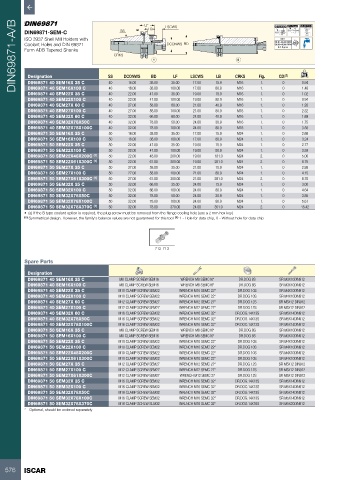

Page 578 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B DIN69871-SEM-C CRKS (a) LF LB • 1 LSCWS BD 2 A SK 50=15,000 RPM 58-60 HRc
A AT3 Taper
0.005
SS
ISO 3937 Shell Mill Holders with
G2.5
SK 40=20,000 RPM
Coolant Holes and DIN 69871
DCONWS
U<1.0 gmm
Form ADB Tapered Shanks
kg
BD
LF
LB
Designation
(2)
0
M16
1.
17.00
35.00
DIN69871 40 SEM16X 35 C
40
16.00
17.00
80.9
1.
M16
0
40
16.00
1.48
38.00
DIN69871 40 SEM16X100 C
DIN69871 40 SEM22X 35 C SS DCONWS 38.00 100.00 LSCWS 15.9 CRKS Fig. CDI 0.94
1.
40
M16
0
22.00
1.02
35.00
47.00
15.9
19.00
DIN69871 40 SEM22X100 C 40 22.00 47.00 100.00 19.00 80.9 M16 1. 0 0.94
DIN69871 40 SEM27X 60 C 40 27.00 58.00 60.00 21.00 40.9 M16 1. 0 1.20
DIN69871 40 SEM27X100 C 40 27.00 58.00 100.00 21.00 80.9 M16 1. 0 2.32
DIN69871 40 SEM32X 60 C 40 32.00 66.00 60.00 24.00 40.9 M16 1. 0 1.69
DIN69871 40 SEM32X78X50C 40 32.00 78.00 50.00 24.00 30.9 M16 1. 0 1.75
DIN69871 40 SEM32X78X100C 40 32.00 78.00 100.00 24.00 80.9 M16 1. 0 3.58
DIN69871 50 SEM16X 35 C 50 16.00 38.00 35.00 17.00 15.9 M24 1. 0 2.68
DIN69871 50 SEM16X100 C 50 16.00 38.00 100.00 17.00 80.9 M24 1. 0 3.24
DIN69871 50 SEM22X 35 C 50 22.00 47.00 35.00 19.00 15.9 M24 1. 0 2.77
DIN69871 50 SEM22X100 C 50 22.00 47.00 100.00 19.00 80.9 M24 1. 0 3.59
DIN69871 50 SEM22X48X200C (1) 50 22.00 48.00 200.00 19.00 181.0 M24 2. 0 5.00
DIN69871 50 SEM22X61X300C (1) 50 22.00 61.00 300.00 19.00 281.0 M24 2. 0 8.75
DIN69871 50 SEM27X 35 C 50 27.00 58.00 35.00 21.00 15.9 M24 1. 0 2.88
DIN69871 50 SEM27X100 C 50 27.00 58.00 100.00 21.00 80.9 M24 1. 0 4.15
DIN69871 50 SEM27X61X300C (1) 50 27.00 61.00 300.00 21.00 281.0 M24 2. 0 8.70
DIN69871 50 SEM32X 35 C 50 32.00 66.00 35.00 24.00 15.9 M24 1. 0 3.00
DIN69871 50 SEM32X100 C 50 32.00 66.00 100.00 24.00 80.9 M24 1. 0 4.64
DIN69871 50 SEM32X78X50C 50 32.00 78.00 50.00 24.00 30.9 M24 1. 0 3.85
DIN69871 50 SEM32X78X100C 50 32.00 78.00 100.00 24.00 80.9 M24 1. 0 5.61
DIN69871 50 SEM32X78X370C (1) 50 32.00 78.00 370.00 24.00 351.0 M24 2. 0 15.42
• (a) If the B type coolant option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key)
(1) Symmetrical design. However, the family's balance values are not guaranteed for this tool (1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713

Spare Parts
Designation
DIN69871 40 SEM16X 35 C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912
DIN69871 40 SEM16X100 C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912
DIN69871 40 SEM22X 35 C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 40 SEM22X100 C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 40 SEM27X 60 C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912
DIN69871 40 SEM27X100 C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912
DIN69871 40 SEM32X 60 C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 40 SEM32X78X50C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 40 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 50 SEM16X 35 C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912
DIN69871 50 SEM16X100 C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912
DIN69871 50 SEM22X 35 C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 50 SEM22X100 C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 50 SEM22X48X200C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 50 SEM22X61X300C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
DIN69871 50 SEM27X 35 C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912
DIN69871 50 SEM27X100 C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912
DIN69871 50 SEM27X61X300C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 DR.DOG 12S SR M5X12 DIN912
DIN69871 50 SEM32X 35 C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 50 SEM32X100 C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 50 SEM32X78X50C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 50 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912
DIN69871 50 SEM32X78X370C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X16S SR M5X20DIN912
* Optional, should be ordered separately
576 ISCAR
