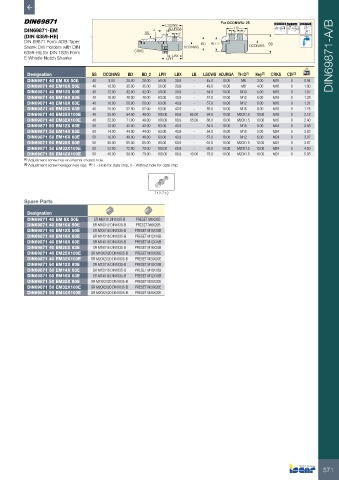

P. 573

For DCONWS≥ 25
                                                           LSCWS                   LB            A  0.005  A AT3 Taper  58-60 HRc
          DIN69871-EM                               SS  J   ADJRGA                 2˚  2˚
          (DIN 6359-HE)                                         2˚
          DIN 69871 Form ADB Taper                                      BD  BD_2               BD
          Shank Drill Holders with DIN                            DCONWS                 DCONWS
          6359-HE for DIN 1835 Form             CRKS
          E Whistle Notch Shanks                           LPR LBX                                                    DIN69871-A/B


           Designation           SS  DCONWS   BD   BD_2  LPR  LBX   LB  LSCWS ADJRGA THID (1)  Key (2)  CRKS  CDI (3)  kg
           DIN69871 40 EM 8X 50E  40   8.00  28.00  28.00  50.00  30.9  -  45.0  10.00  M6  3.00  M16  0    0.94
           DIN69871 40 EM10X 50E  40   10.00  35.00  35.00  50.00  30.9  -  49.0  10.00  M8  4.00  M16  0   1.00
           DIN69871 40 EM12X 50E  40   12.00  42.00  42.00  50.00  30.9  -  54.0  10.00  M10  5.00  M16  0  1.07
           DIN69871 40 EM16X 63E  40   16.00  48.00  48.00  63.00  43.9  -  57.0  10.00  M12  6.00  M16  0  1.28
           DIN69871 40 EM18X 63E  40   18.00  50.00  50.00  63.00  43.9  -  57.0  10.00  M12  6.00  M16  0  1.31
           DIN69871 40 EM20X 63E  40   20.00  52.00  52.00  63.00  43.9  -  59.0  10.00  M16  8.00  M16  0  1.25
           DIN69871 40 EM25X100E  40   25.00  64.00  49.00  100.00  80.9  65.00  64.0  10.00  M20X1.5  10.00  M16  0  2.18
           DIN69871 40 EM32X100E  40   32.00  71.00  49.00  100.00  80.9  65.00  68.0  10.00  M20X1.5  10.00  M16  0  2.40
           DIN69871 50 EM12X 63E  50   12.00  42.00  42.00  63.00  43.9  -  54.0  10.00  M10  5.00  M24  0  2.98
           DIN69871 50 EM14X 63E  50   14.00  44.00  44.00  63.00  43.9  -  54.0  10.00  M10  5.00  M24  0  3.02
           DIN69871 50 EM16X 63E  50   16.00  48.00  48.00  63.00  43.9  -  57.0  10.00  M12  6.00  M24  0  3.07
           DIN69871 50 EM25X 80E  50   25.00  65.00  65.00  80.00  60.9  -  64.0  10.00  M20X1.5  10.00  M24  0  3.67
           DIN69871 50 EM32X100E  50   32.00  72.00  72.00  100.00  80.9  -  68.0  10.00  M20X1.5  10.00  M24  0  4.50
           DIN69871 50 EM40X100E  50   40.00  90.00  79.90  100.00  80.9  43.00  78.0  10.00  M20X1.5  10.00  M24  0  5.05
          (1)  Adjustment screw has an internal coolant hole.
          (2)  Adjustment screw hexagon key size.   (1)  1 - Hole for data chip, 0 - Without hole for data chip




                                                       712-713
          Spare Parts
           Designation
           DIN69871 40 EM 8X 50E  SR M8X10 DIN1835-B  PRESET M6X20B
           DIN69871 40 EM10X 50E  SR M10X12 DIN1835-B  PRESET M8X20B
           DIN69871 40 EM12X 50E  SR M12X16 DIN1835-B  PRESET M10X18B
           DIN69871 40 EM16X 63E  SR M14X16 DIN1835-B  PRESET M12X18B
           DIN69871 40 EM18X 63E  SR M14X16 DIN1835-B  PRESET M12X18B
           DIN69871 40 EM20X 63E  SR M16X16 DIN1835-B  PRESET M16X20B
           DIN69871 40 EM25X100E  SR M18X2X20 DIN1835-B  PRESET M20X20E
           DIN69871 40 EM32X100E  SR M20X2X20 DIN1835-B  PRESET M20X20E
           DIN69871 50 EM12X 63E  SR M12X16 DIN1835-B  PRESET M10X18B
           DIN69871 50 EM14X 63E  SR M12X16 DIN1835-B  PRESET M10X18B
           DIN69871 50 EM16X 63E  SR M14X16 DIN1835-B  PRESET M12X18B
           DIN69871 50 EM25X 80E  SR M18X2X20 DIN1835-B  PRESET M20X20E
           DIN69871 50 EM32X100E  SR M20X2X20 DIN1835-B  PRESET M20X20E
           DIN69871 50 EM40X100E  SR M20X2X20 DIN1835-B  PRESET M20X20E
