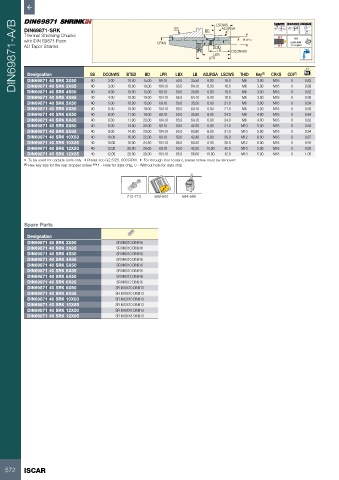

Page 574 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B DIN69871-SRK SS DCONWS BTED BD CRKS SS LB ADJRGA LSCWS DCONWS Key (1) CRKS A CDI 0.003 A 50-52 HRc
AT3 Taper
LSCWS
ADJRGA
BD
4˚
Thermal Shrinking Chucks
G2.5
BTED
with DIN 69871 Form
25,000 RPM
AD Taper Shanks
U<1.0 gmm
THID
LB
LBX
LPR
kg
(2)
THID
LBX
LPR
Designation
DIN69871 40 SRK 3X50
69.10
DIN69871 40 SRK 3X85
M6
64.10
3.00
0.89
19.00
85.0
40
16.0
3.00
M16
6.00
10.00
DIN69871 40 SRK 4X50
69.10
15.00
3.00
M6
0.82
M16
35.50
50.0
18.0
6.00
40
4.00
10.00
64.10
DIN69871 40 SRK 4X85 40 3.00 10.00 15.00 104.10 50.0 35.50 6.00 16.0 M6 3.00 M16 0 0 0 0 0.83
6.00
18.0
M6
M16
3.00
85.0
104.10
40
4.00
19.00
10.00
0.90
DIN69871 40 SRK 5X50 40 5.00 10.00 15.00 69.10 50.0 35.50 6.00 21.0 M6 3.00 M16 0 0.84
DIN69871 40 SRK 5X85 40 5.00 10.00 19.00 104.10 85.0 64.10 6.00 21.0 M6 3.00 M16 0 0.89
DIN69871 40 SRK 6X50 40 6.00 11.00 16.00 69.10 50.0 35.50 6.00 24.0 M8 4.00 M16 0 0.84
DIN69871 40 SRK 6X85 40 6.00 11.00 20.00 104.10 85.0 64.10 6.00 24.0 M8 4.00 M16 0 0.82
DIN69871 40 SRK 8X50 40 8.00 14.00 20.00 69.10 50.0 42.50 6.00 31.0 M10 5.00 M16 0 0.84
DIN69871 40 SRK 8X85 40 8.00 14.00 23.00 104.10 85.0 63.90 6.00 31.0 M10 5.00 M16 0 0.94
DIN69871 40 SRK 10X50 40 10.00 16.00 22.00 69.10 50.0 42.40 6.00 36.0 M12 6.00 M16 0 0.87
DIN69871 40 SRK 10X85 40 10.00 16.00 24.50 104.10 85.0 60.30 6.00 36.0 M12 6.00 M16 0 0.94
DIN69871 40 SRK 12X50 40 12.00 20.00 26.00 69.10 50.0 42.30 10.00 42.0 M10 5.00 M16 0 0.92
DIN69871 40 SRK 12X85 40 12.00 20.00 28.00 104.10 85.0 56.60 10.00 42.0 M10 5.00 M16 0 1.05
• To be used for carbide tools only. • Preset sco G2.5/25, 000 RPM. • For through tool coolant, preset screw must be removed
(1) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713 689-691 694-695

Spare Parts
Designation
DIN69871 40 SRK 3X50 SR M6X10 DIN916
DIN69871 40 SRK 3X85 SR M6X10 DIN916
DIN69871 40 SRK 4X50 SR M6X10 DIN916
DIN69871 40 SRK 4X85 SR M6X10 DIN916
DIN69871 40 SRK 5X50 SR M6X10 DIN916
DIN69871 40 SRK 5X85 SR M6X10 DIN916
DIN69871 40 SRK 6X50 SR M8X12 DIN916
DIN69871 40 SRK 6X85 SR M8X12 DIN916
DIN69871 40 SRK 8X50 SR M10X10 DIN913
DIN69871 40 SRK 8X85 SR M10X10 DIN913
DIN69871 40 SRK 10X50 SR M12X10 DIN913
DIN69871 40 SRK 10X85 SR M12X10 DIN913
DIN69871 40 SRK 12X50 SR M10X18 DIN913
DIN69871 40 SRK 12X85 SR M10X18 DIN913
572 ISCAR
