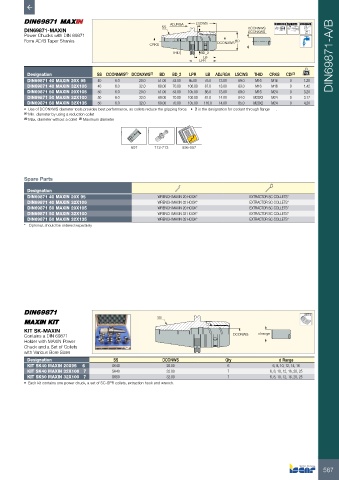

Page 569 - ISCAR(MILLINGCATALOG 38_2021)

ADJRGA LSCWS A 0.003 A AT3 Taper 58-60 HRc
DIN69871-MAXIN SS DCONNWS
DCONXWS
Power Chucks with DIN 69871
Form AD/B Taper Shanks DCONXWS BD
CRKS
THID BD_2
LB DIN69871-A/B
LPR

Designation SS DCONNWS (1) DCONXWS (2) BD BD_2 LPR LB ADJRGA LSCWS THID CRKS CDI (3) kg
DIN69871 40 MAXIN 20X 95 40 6.0 20.0 51.00 53.00 95.00 76.0 13.00 69.0 M16 M16 0 1.20
DIN69871 40 MAXIN 32X106 40 6.0 32.0 69.00 70.00 106.00 87.0 13.00 83.0 M16 M16 0 1.42
DIN69871 50 MAXIN 20X105 50 6.0 20.0 51.00 53.00 105.00 86.0 13.00 69.0 M16 M24 0 3.20
DIN69871 50 MAXIN 32X100 50 6.0 32.0 69.00 70.00 100.00 81.0 14.00 84.0 M20X2 M24 0 3.17
DIN69871 50 MAXIN 32X135 50 6.0 32.0 69.00 70.00 135.00 116.0 14.00 85.0 M20X2 M24 0 4.20
• Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. • B is the designation for coolant through flange .
(1) Min. diameter by using a reduction collet
(2) Max. diameter without a collet (3) Maximum diameter

697 712-713 556-557

Spare Parts

Designation
DIN69871 40 MAXIN 20X 95 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
DIN69871 40 MAXIN 32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
DIN69871 50 MAXIN 20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
DIN69871 50 MAXIN 32X100 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
DIN69871 50 MAXIN 32X135 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
* Optional, should be ordered separately

SETS
SS

KIT SK-MAXIN
Contains a DIN 69871 DCONWS d range
Holder with MAXIN Power
Chuck and a Set of Collets
with Various Bore Sizes
Designation SS DCONWS Qty d Range
KIT SK40 MAXIN 20X95 6 SK40 20.00 6 6, 8, 10, 12, 14, 16
KIT SK40 MAXIN 32X106 7 SK40 32.00 7 6, 8, 10, 12, 16, 20, 25
KIT SK50 MAXIN 32X100 7 SK50 32.00 7 6, 8, 10, 12, 16, 20, 25
• Each kit contains one power chuck, a set of SC-SPR collets, extraction hook and wrench.

567
