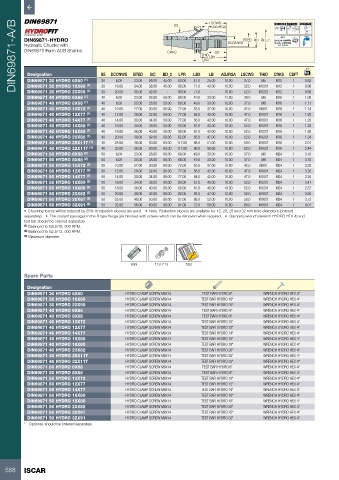

Page 570 - ISCAR(MILLINGCATALOG 38_2021)
P. 570
DIN69871-A/B DIN69871-HYDRO SS DCONWS BTED BD BD_2 SS LPR LBX THID LSCWS ADJRGA LSCWS BD BD_2 CRKS A AT3 Taper (3) 58-60 HRc
0.003
A
ADJRGA
G2.5
BTED
Size 30, 40= 18,000RPM
DCONWS
Size 50= 12,000RPM
Hydraulic Chucks with
U<1.0 gmm
DIN69871 Form ADB Shanks
CRKS
LB
LBX
LPR
kg
CDI
THID
LB
Designation
DIN69871 30 HYDRO 6X60
6.00
M5
DIN69871 30 HYDRO 16X90
38.00
52.0
M12
45.00
0.96
30
10.00
34.00
90.00
43.00
71.0
DIN69871 30 HYDRO 20X90
(1)
71.0
10.00
M12X1
52.0
30
20.00
-
0.90
38.00
42.00
-
90.00
M12
50.00
(1)
DIN69871 40 HYDRO 6X68 (1) (1) 30 16.00 23.00 26.00 45.00 60.00 41.0 25.00 10.00 37.0 M12X1 M12 1 1 1 1 0.63
6.00
40
33.00
1.09
11.00
26.00
M5
23.00
38.0
M16
68.00
49.0
DIN69871 40 HYDRO 8X68 (1) 40 8.00 25.00 28.00 50.00 68.00 49.0 33.00 10.00 37.0 M6 M16 1 1.11
DIN69871 40 HYDRO 10X72 (1) 40 10.00 27.00 30.00 50.00 72.00 53.0 37.00 10.00 42.0 M8X1 M16 1 1.14
DIN69871 40 HYDRO 12X77 (1) 40 12.00 29.00 32.00 50.00 77.00 58.0 42.00 10.00 47.0 M10X1 M16 1 1.20
DIN69871 40 HYDRO 14X77 (1) 40 14.00 30.00 34.00 50.00 77.00 58.0 42.00 10.00 47.0 M10X1 M16 1 1.20
DIN69871 40 HYDRO 16X80 (1) 40 16.00 34.00 38.00 50.00 80.00 61.0 43.00 10.00 52.0 M12X1 M16 1 1.28
DIN69871 40 HYDRO 18X80 (1) 40 18.00 36.00 40.00 50.00 80.00 61.0 43.00 10.00 52.0 M12X1 M16 1 1.30
DIN69871 40 HYDRO 20X82 (1) 40 20.00 38.00 42.00 50.00 82.00 63.0 47.00 10.00 52.0 M12X1 M16 1 1.34
DIN69871 40 HYDRO 25X117 (1) 40 25.00 46.00 50.00 63.00 117.00 98.0 51.00 10.00 58.0 M16X1 M16 1 2.01
DIN69871 40 HYDRO 32X117 (1) 40 32.00 56.00 60.00 63.00 117.00 98.0 56.00 10.00 62.0 M16X1 M16 1 2.44
DIN69871 50 HYDRO 6X68 (2) 50 6.00 23.00 26.00 80.00 68.00 49.0 33.00 10.00 37.0 M5 M24 1 3.10
DIN69871 50 HYDRO 8X68 (2) 50 8.00 25.00 28.00 80.00 68.00 49.0 33.00 10.00 37.0 M6 M24 1 3.10
DIN69871 50 HYDRO 10X72 (2) 50 10.00 27.00 30.00 80.00 72.00 53.0 37.00 10.00 42.0 M8X1 M24 1 3.20
DIN69871 50 HYDRO 12X77 (2) 50 12.00 29.00 32.00 80.00 77.00 58.0 42.00 10.00 47.0 M10X1 M24 1 3.20
DIN69871 50 HYDRO 14X77 (2) 50 14.00 30.00 34.00 80.00 77.00 58.0 42.00 10.00 47.0 M10X1 M24 1 3.34
DIN69871 50 HYDRO 16X80 (2) 50 16.00 34.00 38.00 80.00 80.00 61.0 45.00 10.00 52.0 M12X1 M24 1 3.41
DIN69871 50 HYDRO 18X80 (2) 50 18.00 36.00 40.00 80.00 80.00 61.0 45.00 10.00 52.0 M12X1 M24 1 2.57
DIN69871 50 HYDRO 20X82 (2) 50 20.00 38.00 42.00 80.00 82.00 63.0 47.00 10.00 52.0 M16X1 M24 1 3.50
DIN69871 50 HYDRO 25X87 (2) 50 25.00 46.00 50.00 80.00 87.00 68.0 52.00 10.00 58.0 M16X1 M24 1 3.73
DIN69871 50 HYDRO 32X91 (2) 50 32.00 56.00 60.00 80.00 91.00 72.0 56.00 10.00 64.0 M16X1 M24 1 4.01
• Chucking forces will be reduced by 25% if reduction sleeves are used. • Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered
separately). • The coolant passages in the B type flange are blocked with screws which can be removed when required. • Clamping wrench (wrench HYDRO HEX 4) and
test bar should be ordered separately.
(1) Balanced to G2.5/18, 000 RPM.
(2) Balanced to G2.5/12, 000 RPM.
(3) Maximum diameter
699 712-713 562
Spare Parts
Designation
DIN69871 30 HYDRO 6X60 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4*
DIN69871 30 HYDRO 16X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4*
DIN69871 30 HYDRO 20X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 6X68 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 8X68 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 8* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 10X72 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 10* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 12X77 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 12* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 14X77 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 16X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 18X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 20X82 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 25X117 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 25* WRENCH HYDRO HEX 4*
DIN69871 40 HYDRO 32X117 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 32* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 6X68 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 8X68 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 8* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 10X72 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 10* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 12X77 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 12* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 14X77 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 16X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 18X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 20X82 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 25X87 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 25* WRENCH HYDRO HEX 4*
DIN69871 50 HYDRO 32X91 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 32* WRENCH HYDRO HEX 4*
* Optional, should be ordered separately
568 ISCAR
