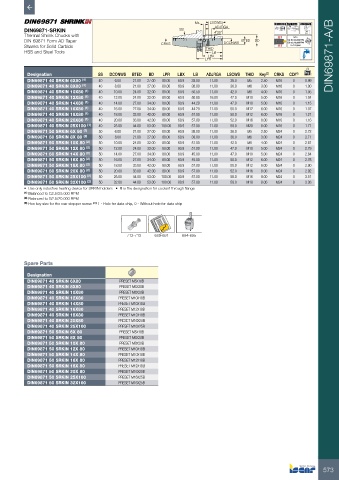

Page 575 - ISCAR(MILLINGCATALOG 38_2021)

M6 LSCWS A 0.003 A AT3 Taper 50-52 HRc
DIN69871-SRKIN SS ADJRGA
4˚30’
Thermal Shrink Chucks with
G2.5
DIN 69871 Form AD Taper DCONWS BTED BD SK 40=25,000RPM
SK 50=20,000RPM
Shanks for Solid Carbide CRKS THID U<1.0 gmm
HSS and Steel Tools LB
LBX DIN69871-A/B
LPR
Designation SS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key (3) CRKS CDI (4) kg
DIN69871 40 SRKIN 6X80 (1) 40 6.00 21.00 27.00 80.00 60.9 38.00 11.00 36.0 M5 2.50 M16 0 0.99
DIN69871 40 SRKIN 8X80 (1) 40 8.00 21.00 27.00 80.00 60.9 38.00 11.00 36.0 M6 3.00 M16 0 1.00
DIN69871 40 SRKIN 10X80 (1) 40 10.00 24.00 32.00 80.00 60.9 50.50 11.00 42.0 M8 4.00 M16 0 1.05
DIN69871 40 SRKIN 12X80 (1) 40 12.00 24.00 32.00 80.00 60.9 50.80 16.00 47.0 M10 5.00 M16 0 1.04
DIN69871 40 SRKIN 14X80 (1) 40 14.00 27.00 34.00 80.00 60.9 44.20 11.00 47.0 M10 5.00 M16 0 1.15
DIN69871 40 SRKIN 16X80 (1) 40 16.00 27.00 34.00 80.00 60.9 44.20 11.00 50.0 M12 6.00 M16 0 1.07
DIN69871 40 SRKIN 18X80 (1) 40 18.00 33.00 42.00 80.00 60.9 57.00 11.00 50.0 M12 6.00 M16 0 1.21
DIN69871 40 SRKIN 20X80 (1) 40 20.00 33.00 42.00 80.00 60.9 57.00 11.00 52.0 M16 8.00 M16 0 1.16
DIN69871 40 SRKIN 25X100 (1) 40 25.00 44.00 53.00 100.00 80.9 57.00 11.00 58.0 M20 8.00 M16 0 1.71
DIN69871 50 SRKIN 6X 80 (2) 50 6.00 21.00 27.00 80.00 60.9 38.00 11.00 36.0 M5 2.50 M24 0 2.72
DIN69871 50 SRKIN 8X 80 (2) 50 8.00 21.00 27.00 80.00 60.9 38.00 11.00 36.0 M6 3.00 M24 0 2.71
DIN69871 50 SRKIN 10X 80 (2) 50 10.00 24.00 32.00 80.00 60.9 51.00 11.00 42.0 M8 4.00 M24 0 2.81
DIN69871 50 SRKIN 12X 80 (2) 50 12.00 24.00 32.00 80.00 60.9 51.00 11.00 47.0 M10 5.00 M24 0 2.79
DIN69871 50 SRKIN 14X 80 (2) 50 14.00 27.00 34.00 80.00 60.9 45.00 11.00 47.0 M10 5.00 M24 0 2.84
DIN69871 50 SRKIN 16X 80 (2) 50 16.00 27.00 34.00 80.00 60.9 45.00 11.00 50.0 M12 6.00 M24 0 2.76
DIN69871 50 SRKIN 18X 80 (2) 50 18.00 33.00 42.00 80.00 60.9 57.00 11.00 50.0 M12 6.00 M24 0 2.90
DIN69871 50 SRKIN 20X 80 (2) 50 20.00 33.00 42.00 80.00 60.9 57.00 11.00 52.0 M16 8.00 M24 0 2.92
DIN69871 50 SRKIN 25X100 (2) 50 25.00 44.00 53.00 100.00 80.9 57.00 11.00 58.0 M16 8.00 M24 0 3.51
DIN69871 50 SRKIN 32X100 (2) 50 32.00 44.00 53.00 100.00 80.9 57.00 11.00 58.0 M18 8.00 M24 0 3.36
• Use only inductive heating device for SRKIN holders • B is the designation for coolant through flange
(1) Balanced to G2.5/25.000 RPM
(2) Balanced to G2.5/20.000 RPM
(3) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713 689-691 694-695

Spare Parts

Designation
DIN69871 40 SRKIN 6X80 PRESET M5X18B
DIN69871 40 SRKIN 8X80 PRESET M6X20B
DIN69871 40 SRKIN 10X80 PRESET M8X20B
DIN69871 40 SRKIN 12X80 PRESET M10X18B
DIN69871 40 SRKIN 14X80 PRESET M10X18B
DIN69871 40 SRKIN 16X80 PRESET M12X18B
DIN69871 40 SRKIN 18X80 PRESET M12X18B
DIN69871 40 SRKIN 20X80 PRESET M16X20B
DIN69871 40 SRKIN 25X100 PRESET M16X25B
DIN69871 50 SRKIN 6X 80 PRESET M5X18B
DIN69871 50 SRKIN 8X 80 PRESET M6X20B
DIN69871 50 SRKIN 10X 80 PRESET M8X20B
DIN69871 50 SRKIN 12X 80 PRESET M10X18B
DIN69871 50 SRKIN 14X 80 PRESET M10X18B
DIN69871 50 SRKIN 16X 80 PRESET M12X18B
DIN69871 50 SRKIN 18X 80 PRESET M12X18B
DIN69871 50 SRKIN 20X 80 PRESET M16X20B
DIN69871 50 SRKIN 25X100 PRESET M16X25B
DIN69871 50 SRKIN 32X100 PRESET M16X25B
