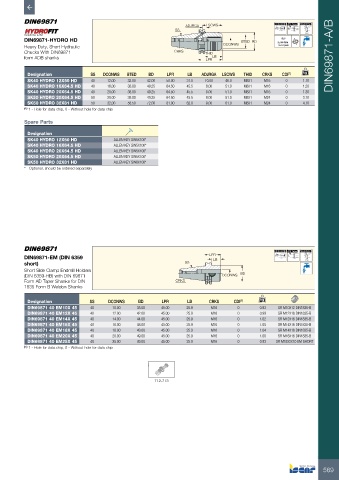

Page 571 - ISCAR(MILLINGCATALOG 38_2021)

ADJRGA LSCWS A 0.003 A AT3 Taper 58-60 HRc
SS
G2.5
DIN69871-HYDRO HD BTED BD 25,000 RPM
Heavy Duty, Short Hydraulic DCONWS U<1.0 gmm
Chucks With DIN69871 CRKS THID
form ADB shanks LPR LB DIN69871-A/B

Designation SS DCONWS BTED BD LPR LB ADJRGA LSCWS THID CRKS CDI (1) kg
SK40 HYDRO 12X50 HD 40 12.00 32.00 42.00 50.00 31.0 10.00 46.0 M8X1 M16 0 1.10
SK40 HYDRO 16X64.5 HD 40 16.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M16 0 1.20
SK40 HYDRO 20X64.5 HD 40 20.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M16 0 1.30
SK50 HYDRO 20X64.5 HD 50 20.00 38.00 49.25 64.50 45.5 8.00 51.0 M8X1 M24 0 3.10
SK50 HYDRO 32X81 HD 50 32.00 58.50 72.00 81.00 62.0 9.00 61.0 M8X1 M24 0 4.10
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
SK40 HYDRO 12X50 HD ALLEN KEY SW5X100*
SK40 HYDRO 16X64.5 HD ALLEN KEY SW5X100*
SK40 HYDRO 20X64.5 HD ALLEN KEY SW5X100*
SK50 HYDRO 20X64.5 HD ALLEN KEY SW5X100*
SK50 HYDRO 32X81 HD ALLEN KEY SW6X100*
* Optional, should be ordered separately

A 0.005 A AT3 Taper 58-60 HRc

DIN69871-EM (DIN 6359 LPR
LB
short) SS
Short Side Clamp Endmill Holders
(DIN 6359-HB) with DIN 69871 DCONWS BD
Form AD Taper Shanks for DIN CRKS
1835 Form B Weldon Shanks

Designation SS DCONWS BD LPR LB CRKS CDI (1) kg
DIN69871 40 EM10X 45 40 10.00 35.00 45.00 25.9 M16 0 0.93 SR M10X12 DIN1835-B
DIN69871 40 EM12X 45 40 12.00 42.00 45.00 25.9 M16 0 0.99 SR M12X16 DIN1835-B
DIN69871 40 EM14X 45 40 14.00 44.00 45.00 25.9 M16 0 1.02 SR M12X16 DIN1835-B
DIN69871 40 EM16X 45 40 16.00 48.00 45.00 25.9 M16 0 1.05 SR M14X16 DIN1835-B
DIN69871 40 EM18X 45 40 18.00 49.00 45.00 25.9 M16 0 1.04 SR M14X16 DIN1835-B
DIN69871 40 EM20X 45 40 20.00 49.00 45.00 25.9 M16 0 1.00 SR M16X16 DIN1835-B
DIN69871 40 EM25X 45 40 25.00 49.00 45.00 25.9 M16 0 0.93 SR M18X2X10 EM SHORT
(1) 1 - Hole for data chip, 0 - Without hole for data chip
