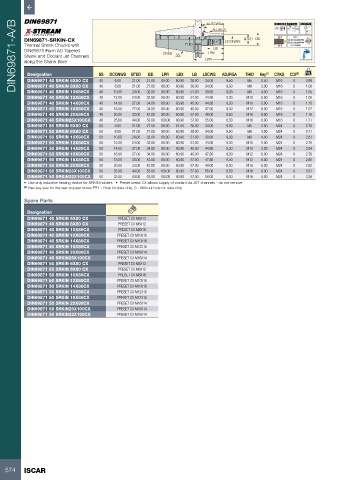

Page 576 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B DIN69871-SRKIN-CX SS DCONWS BTED BD LPR SS THID LB M6 LPR ADJRGA DCONWS BTED BD Key (1) A CRKS A AT3 Taper (2) 50-52 HRc
LSCWS
0.003

G2.5
SK 40=25,000RPM
4.5°
SK 50=20,000RPM
Thermal Shrink Chucks with
U<1.0 gmm
LB
DIN69871 Form AD Tapered
LBX
CRKS
Shank and Coolant Jet Channels
along the Shank Bore
kg
THID
ADJRGA
LSCWS
Designation
LBX
CDI
DIN69871 40 SRKIN 6X80 CX
M5
6.00
DIN69871 40 SRKIN 8X80 CX
80.00
1.00
40
60.90
34.00
21.00
3.00
M16
38.00
8.00
9.50
27.00
M6
DIN69871 40 SRKIN 10X80CX
80.00
32.00
40
24.00
60.90
M8
9.30
M16
39.80
4.00
51.00
1.05
5.00
1.05
M16
51.00
60.90
44.80
9.30
80.00
40
DIN69871 40 SRKIN 12X80CX 40 10.00 21.00 27.00 80.00 60.90 38.00 34.00 9.50 M10 2.50 M16 0 0 0 0 0.99
12.00
32.00
24.00
DIN69871 40 SRKIN 14X80CX 40 14.00 27.00 34.00 80.00 60.90 45.00 44.80 9.30 M10 5.00 M16 0 1.15
DIN69871 40 SRKIN 16X80CX 40 16.00 27.00 34.00 80.00 60.90 45.00 47.80 9.30 M12 6.00 M16 0 1.07
DIN69871 40 SRKIN 20X80CX 40 20.00 33.00 42.00 80.00 60.90 57.00 49.00 8.50 M16 8.00 M16 0 1.16
DIN69871 40 SRKIN25X100CX 40 25.00 44.00 53.00 100.00 80.90 57.00 55.00 8.50 M16 8.00 M16 0 1.71
DIN69871 50 SRKIN 6X80 CX 50 6.00 21.00 27.00 80.00 61.00 38.00 34.00 9.50 M5 2.50 M24 0 2.72
DIN69871 50 SRKIN 8X80 CX 50 8.00 21.00 27.00 80.00 60.90 38.00 34.00 9.50 M6 3.00 M24 0 2.71
DIN69871 50 SRKIN 10X80CX 50 10.00 24.00 32.00 80.00 60.90 51.00 39.80 9.30 M8 4.00 M24 0 2.81
DIN69871 50 SRKIN 12X80CX 50 12.00 24.00 32.00 80.00 60.90 51.00 44.80 9.30 M10 5.00 M24 0 2.79
DIN69871 50 SRKIN 14X80CX 50 14.00 27.00 34.00 80.00 60.90 45.00 44.80 9.30 M10 5.00 M24 0 2.84
DIN69871 50 SRKIN 16X80CX 50 16.00 27.00 34.00 80.00 60.90 45.00 47.80 9.30 M12 6.00 M24 0 2.76
DIN69871 50 SRKIN 18X80CX 50 18.00 33.00 42.00 80.00 60.90 57.00 47.80 9.30 M12 6.00 M24 0 2.90
DIN69871 50 SRKIN 20X80CX 50 20.00 33.00 42.00 80.00 60.90 57.00 49.00 8.50 M16 8.00 M24 0 2.92
DIN69871 50 SRKIN25X100CX 50 25.00 44.00 53.00 100.00 80.90 57.00 55.00 8.50 M16 8.00 M24 0 3.51
DIN69871 50 SRKIN32X100CX 50 32.00 44.00 53.00 100.00 80.90 57.00 59.00 8.50 M16 8.00 M24 0 3.36
• Use only inductive heating device for SRKIN holders • Preset screw CX allows supply of coolant via JET channels - do not remove
(1) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts
Designation
DIN69871 40 SRKIN 6X80 CX PRESET CX M5X13
DIN69871 40 SRKIN 8X80 CX PRESET CX M6X12
DIN69871 40 SRKIN 10X80CX PRESET CX M8X16
DIN69871 40 SRKIN 12X80CX PRESET CX M10X16
DIN69871 40 SRKIN 14X80CX PRESET CX M10X16
DIN69871 40 SRKIN 16X80CX PRESET CX M12X16
DIN69871 40 SRKIN 20X80CX PRESET CX M16X14
DIN69871 40 SRKIN25X100CX PRESET CX M16X14
DIN69871 50 SRKIN 6X80 CX PRESET CX M5X13
DIN69871 50 SRKIN 8X80 CX PRESET CX M6X12
DIN69871 50 SRKIN 10X80CX PRESET CX M8X16
DIN69871 50 SRKIN 12X80CX PRESET CX M10X16
DIN69871 50 SRKIN 14X80CX PRESET CX M10X16
DIN69871 50 SRKIN 16X80CX PRESET CX M12X16
DIN69871 50 SRKIN 18X80CX PRESET CX M12X16
DIN69871 50 SRKIN 20X80CX PRESET CX M16X14
DIN69871 50 SRKIN25X100CX PRESET CX M16X14
DIN69871 50 SRKIN32X100CX PRESET CX M16X14
574 ISCAR
