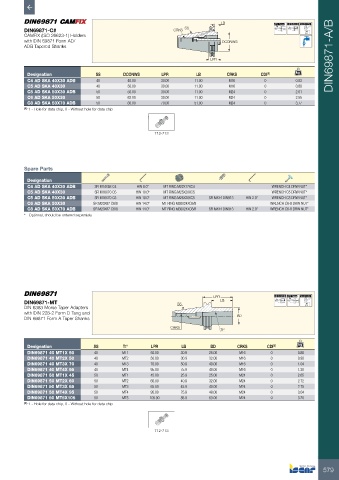

Page 581 - ISCAR(MILLINGCATALOG 38_2021)

LB AT3 Taper A 0.003 A 58-60 HRc
DIN69871-C# CRKS SS

CAMFIX (ISO 26623-1) Holders
with DIN 69871 Form AD/ DCONWS
ADB Tapered Shanks
LPR DIN69871-A/B

Designation SS DCONWS LPR LB CRKS CDI (1) kg
C4 AD SKA 40X30 ADB 40 40.00 30.00 11.00 M16 0 0.83
C5 AD SKA 40X30 40 50.00 30.00 11.00 M16 0 0.80
C5 AD SKA 50X30 ADB 50 50.00 30.00 11.00 M24 0 2.61
C6 AD SKA 50X30 50 63.00 30.00 11.00 M24 0 2.55
C8 AD SKA 50X70 ADB 50 80.00 70.00 51.00 M24 0 3.77
(1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713

Spare Parts

Designation
C4 AD SKA 40X30 ADB SR M14X58 C4 HW 8.0* MT RING M22X17XC4 WRENCH C4 DRW NUT*
C5 AD SKA 40X30 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 WRENCH C5 DRW NUT*
C5 AD SKA 50X30 ADB SR M16X70 C5 HW 10.0* MT RING M25X20XC5 SR M4X4 DIN913 HW 2.0* WRENCH C5 DRW NUT*
C6 AD SKA 50X30 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT*
C8 AD SKA 50X70 ADB SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 SR M4X4 DIN913 HW 2.0* WRENCH C6-8 DRW NUT*
* Optional, should be ordered separately

LPR A 0.005 A AT3 Taper 58-60 HRc

DIN69871-MT SS LB
DIN 6383 Morse Taper Adapters
with DIN 228-2 Form D Tang and BD
DIN 69871 Form A Taper Shanks
CRKS
Tt°

Designation SS Tt° LPR LB BD CRKS CDI (1) kg
DIN69871 40 MT1X 50 40 MT1 50.00 30.9 25.00 M16 0 0.88
DIN69871 40 MT2X 50 40 MT2 50.00 30.9 32.00 M16 0 0.90
DIN69871 40 MT3X 70 40 MT3 70.00 50.9 40.00 M16 0 1.04
DIN69871 40 MT4X 95 40 MT4 95.00 75.9 48.00 M16 0 1.30
DIN69871 50 MT1X 45 50 MT1 45.00 25.9 25.00 M24 0 2.65
DIN69871 50 MT2X 60 50 MT2 60.00 40.9 32.00 M24 0 2.72
DIN69871 50 MT3X 65 50 MT3 65.00 45.9 40.00 M24 0 2.75
DIN69871 50 MT4X 95 50 MT4 95.00 75.9 48.00 M24 0 3.04
DIN69871 50 MT5X105 50 MT5 105.00 85.9 63.00 M24 0 3.20
(1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713

579
