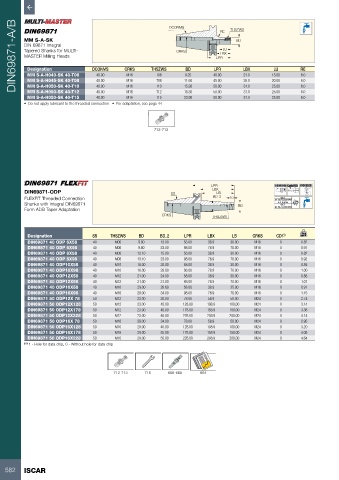

Page 584 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B MM S-A-SK DCONMS CRKS THSZWS DCONMS 9.25 40.00 RE LU THSZWS LBX 15.00 RE

BD
DIN 69871 Integral
Tapered Shanks for MULTI-
CRKS
LBX
MASTER Milling Heads
LPR
Designation
BD
LPR
LU
M16
40.00
T06
6.0
21.0
MM S-A-H040-SK 40-T06
MM S-A-H045-SK 40-T08
MM S-A-H050-SK 40-T10
15.30
25.00
31.0
50.00
40.00
6.0
M16
T10
MM S-A-H050-SK 40-T12
T12
18.30
M16
25.00
6.0
50.00
40.00
31.0
M16
40.00
MM S-A-H050-SK 40-T15 40.00 M16 T08 11.60 45.00 26.0 20.00 6.0
25.00
6.0
31.0
T15
23.90
50.00
• Do not apply lubricant to the threaded connection • For adaptation, see page 44
712-713

LPR A 0.003 A AT3 Taper 58-60 HRc
DIN69871-ODP SS LBX LB
FLEXFIT Threaded Connection BD_2 10 SK 40=20,000 RPM
G2.5
Shanks with Integral DIN69871 BD U<1.0 gmm
G6.3
Form ADB Taper Adaptation SK 50=12,000 RPM
CRKS THSZWS
Designation SS THSZWS BD BD_2 LPR LBX LB CRKS CDI (1) kg
DIN69871 40 ODP 6X58 40 M06 9.80 13.00 58.00 38.9 30.00 M16 0 0.82
DIN69871 40 ODP 6X98 40 M06 9.80 23.00 98.00 78.9 70.00 M16 0 0.91
DIN69871 40 ODP 8X58 40 M08 13.10 15.00 58.00 38.9 30.00 M16 0 0.82
DIN69871 40 ODP 8X98 40 M08 13.10 23.00 98.00 78.9 70.00 M16 0 0.92
DIN69871 40 ODP10X58 40 M10 18.00 20.00 58.00 38.9 30.00 M16 0 0.84
DIN69871 40 ODP10X98 40 M10 18.00 28.00 98.00 78.9 70.00 M16 0 1.00
DIN69871 40 ODP12X58 40 M12 21.00 24.00 58.00 38.9 30.00 M16 0 0.88
DIN69871 40 ODP12X98 40 M12 21.00 31.00 98.00 78.9 70.00 M16 0 1.07
DIN69871 40 ODP16X58 40 M16 29.00 28.60 58.00 38.9 35.00 M16 0 0.91
DIN69871 40 ODP16X98 40 M16 29.00 34.00 98.00 78.9 70.00 M16 0 1.15
DIN69871 50 ODP12X 78 50 M12 23.00 30.00 78.00 58.9 50.00 M24 0 2.74
DIN69871 50 ODP12X128 50 M12 23.00 40.00 128.00 108.9 100.00 M24 0 3.14
DIN69871 50 ODP12X178 50 M12 23.00 40.00 178.00 158.9 150.00 M24 0 3.38
DIN69871 50 ODP12X228 50 M12 23.00 46.00 228.00 208.9 200.00 M24 0 4.14
DIN69871 50 ODP16X 78 50 M16 29.00 34.00 78.00 58.9 50.00 M24 0 2.95
DIN69871 50 ODP16X128 50 M16 29.00 40.00 128.00 108.9 100.00 M24 0 3.20
DIN69871 50 ODP16X178 50 M16 29.00 55.00 178.00 158.9 150.00 M24 0 4.08
DIN69871 50 ODP16X228 50 M16 29.00 55.00 228.00 208.9 200.00 M24 0 4.64
(1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713 715 666-668 664
