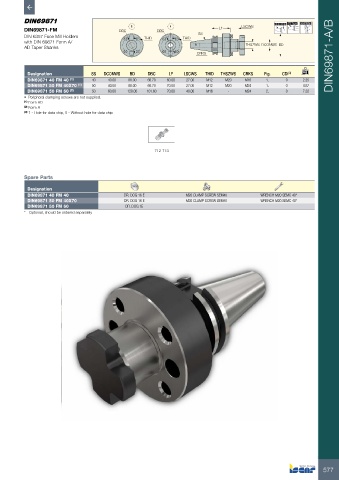

Page 579 - ISCAR(MILLINGCATALOG 38_2021)

A 0.005 A AT3 Taper 58-60 HRc

DIN69871-FM DBC 2 DBC 1 LF LSCWS
DIN 6357 Face Mill Holders THID THID SS
with DIN 69871 Form A/ THSZWS DCONWS BD
AD Taper Shanks
CRKS DIN69871-A/B

Designation SS DCONWS BD DBC LF LSCWS THID THSZWS CRKS Fig. CDI (3) kg
DIN69871 40 FM 40 (1) 40 40.00 88.00 66.70 60.00 27.00 M12 M20 M16 1. 0 2.25
DIN69871 50 FM 40X70 (1) 50 40.00 88.00 66.70 70.00 27.00 M12 M20 M24 1. 0 4.87
DIN69871 50 FM 60 (2) 50 60.00 128.00 101.60 70.00 40.00 M16 - M24 2. 0 7.32
• Peripheral clamping screws are not supplied.
(1) Form AD
(2) Form A
(3) 1 - Hole for data chip, 0 - Without hole for data chip

712-713

Spare Parts

Designation
DIN69871 40 FM 40 DR. DOG 16 E M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40*
DIN69871 50 FM 40X70 DR. DOG 16 E M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40*
DIN69871 50 FM 60 DR. DOG 1E
* Optional, should be ordered separately

577
