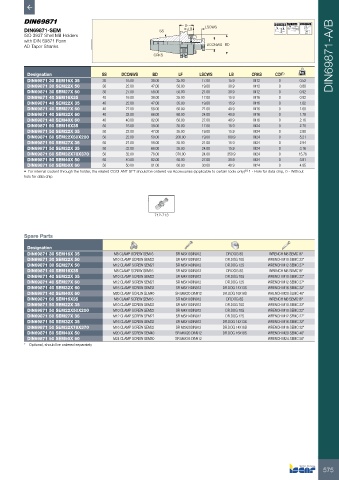

Page 577 - ISCAR(MILLINGCATALOG 38_2021)

LF A 0.005 A AT3 Taper 58-60 HRc
DIN69871-SEM SS LB • LSCWS
ISO 3937 Shell Mill Holders
with DIN 69871 Form
AD Taper Shanks DCONWS BD
CRKS DIN69871-A/B

Designation SS DCONWS BD LF LSCWS LB CRKS CDI (1) kg
DIN69871 30 SEM16X 35 30 16.00 38.00 35.00 17.00 15.9 M12 0 0.52
DIN69871 30 SEM22X 50 30 22.00 47.00 50.00 19.00 30.9 M12 0 0.80
DIN69871 30 SEM27X 50 30 27.00 58.00 50.00 21.00 30.9 M12 0 0.92
DIN69871 40 SEM16X35 40 16.00 38.00 35.00 17.00 15.9 M16 0 0.92
DIN69871 40 SEM22X 35 40 22.00 47.00 35.00 19.00 15.9 M16 0 1.02
DIN69871 40 SEM27X 60 40 27.00 58.00 60.00 21.00 40.9 M16 0 1.60
DIN69871 40 SEM32X 60 40 32.00 66.00 60.00 24.00 40.9 M16 0 1.78
DIN69871 40 SEM40X 60 40 40.00 82.00 60.00 27.00 40.9 M16 0 2.16
DIN69871 50 SEM16X35 50 16.00 38.00 35.00 17.00 15.9 M24 0 2.70
DIN69871 50 SEM22X 35 50 22.00 47.00 35.00 19.00 15.9 M24 0 2.80
DIN69871 50 SEM22X50X200 50 22.00 50.00 200.00 19.00 180.9 M24 0 5.21
DIN69871 50 SEM27X 35 50 27.00 58.00 35.00 21.00 15.9 M24 0 2.94
DIN69871 50 SEM32X 35 50 32.00 66.00 35.00 24.00 15.9 M24 0 3.16
DIN69871 50 SEM32X78X370 50 32.00 78.00 370.00 24.00 350.9 M24 0 15.76
DIN69871 50 SEM40X 50 50 40.00 82.00 50.00 27.00 30.9 M24 0 3.81
DIN69871 50 SEM50X 60 50 50.00 81.00 60.00 30.00 40.9 M24 0 4.85
• For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) (1) 1 - Hole for data chip, 0 - Without
hole for data chip

712-713

Spare Parts

Designation
DIN69871 30 SEM16X 35 M8 CLAMP SCREW SEM16 SR M3X10DIN912 DR.DOG 8S WRENCH M8 SEMC16*
DIN69871 30 SEM22X 50 M10 CLAMP SCREW SEM22 SR M4X10DIN912 DR.DOG 10S WRENCH M10 SEMC 22*
DIN69871 30 SEM27X 50 M12 CLAMP SCREW SEM27 SR M5X14DIN912 DR.DOG 12S WRENCH M12 SEMC 27*
DIN69871 40 SEM16X35 M8 CLAMP SCREW SEM16 SR M3X10DIN912 DR.DOG 8S WRENCH M8 SEMC16*
DIN69871 40 SEM22X 35 M10 CLAMP SCREW SEM22 SR M4X10DIN912 DR.DOG 10S WRENCH M10 SEMC 22*
DIN69871 40 SEM27X 60 M12 CLAMP SCREW SEM27 SR M5X14DIN912 DR.DOG 12S WRENCH M12 SEMC 27*
DIN69871 40 SEM32X 60 M16 CLAMP SCREW SEM32 SR M5X14DIN912 DR.DOG 14X13S WRENCH M16 SEMC 32*
DIN69871 40 SEM40X 60 M20 CLAMP SCREW SEM40 SR M6X20 DIN912 DR.DOG 16X18S WRENCH M20 SEMC 40*
DIN69871 50 SEM16X35 M8 CLAMP SCREW SEM16 SR M3X10DIN912 DR.DOG 8S WRENCH M8 SEMC16*
DIN69871 50 SEM22X 35 M10 CLAMP SCREW SEM22 SR M4X10DIN912 DR.DOG 10S WRENCH M10 SEMC 22*
DIN69871 50 SEM22X50X200 M10 CLAMP SCREW SEM22 SR M4X10DIN912 DR.DOG 10S WRENCH M10 SEMC 22*
DIN69871 50 SEM27X 35 M12 CLAMP SCREW SEM27 SR M5X14DIN912 DR.DOG 12S WRENCH M12 SEMC 27*
DIN69871 50 SEM32X 35 M16 CLAMP SCREW SEM32 SR M5X14DIN912 DR.DOG 14X13S WRENCH M16 SEMC 32*
DIN69871 50 SEM32X78X370 M16 CLAMP SCREW SEM32 SR M5X20DIN912 DR.DOG 14X16S WRENCH M16 SEMC 32*
DIN69871 50 SEM40X 50 M20 CLAMP SCREW SEM40 SR M6X20 DIN912 DR.DOG 16X18S WRENCH M20 SEMC 40*
DIN69871 50 SEM50X 60 M24 CLAMP SCREW SEM50 SR M6X16 DIN912 WRENCH M24 SEMC 50*
* Optional, should be ordered separately

575
