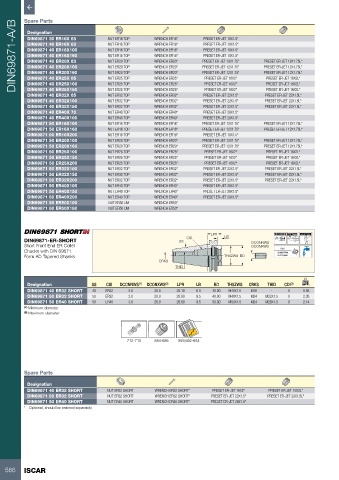

Page 568 - ISCAR(MILLINGCATALOG 38_2021)

DIN69871-A/B Spare Parts NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
Designation
PRESET ER-JET 10X1.5*
DIN69871 30 ER16X 63

PRESET ER-JET 10X1.5*
DIN69871 40 ER16X 63
NUT ER16 TOP
WRENCH ER16*
PRESET ER-JET 10X1.5*
NUT ER16 TOP
WRENCH ER16*
DIN69871 40 ER16X100
DIN69871 40 ER16X160
NUT ER16 TOP
WRENCH ER16*
PRESET ER-JET 10X1.5*
WRENCH ER20*
NUT ER20 TOP
DIN69871 40 ER20X 63
DIN69871 40 ER20X100
NUT ER20 TOP
WRENCH ER20*
PRESET ER-JET 12X1.75*
PRESET ER-JET 12X1.75L*
DIN69871 40 ER20X160
WRENCH ER20*
NUT ER20 TOP
PRESET ER-JET 12X1.75L*
PRESET ER-JET 12X1.75*
DIN69871 40 ER25X 65
PRESET ER-JET 16X2*
PRESET ER-JET 16X2L*
DIN69871 40 ER25X100
NUT ER25 TOP
PRESET ER-JET 16X2*
PRESET ER-JET 16X2L*
WRENCH ER25*
DIN69871 40 ER25X150
NUT ER25 TOP
WRENCH ER25*
PRESET ER-JET 16X2*
PRESET ER-JET 16X2L*
DIN69871 40 ER32X 65 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
WRENCH ER32*
NUT ER32 TOP
DIN69871 40 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 40 ER32X150 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 40 ER40X 70 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN69871 40 ER40X100 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN69871 50 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN69871 50 ER16X160 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN69871 50 ER16X200 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5*
DIN69871 50 ER20X100 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN69871 50 ER20X160 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN69871 50 ER25X100 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN69871 50 ER25X150 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN69871 50 ER25X200 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN69871 50 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 50 ER32X150 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 50 ER32X200 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 50 ER40X100 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN69871 50 ER40X150 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN69871 50 ER40X200 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN69871 50 ER50X100 NUT ER50 UM WRENCH ER50*
DIN69871 50 ER50X150 NUT ER50 UM WRENCH ER50*
LPR A 0.003 A AT3 Taper 58-60 HRc
DIN69871-ER-SHORT SS CSI LB DCONNWS
Short Front End ER Collet DCONXWS
G2.5
Chucks with DIN 69871 20,000 RPM
Form AD Tapered Shanks THSZWS BD U<1.0 gmm
CRKS
THID
Designation SS CSI DCONNWS (1) DCONXWS (2) LPR LB BD THSZWS CRKS THID CDI (3) kg
DIN69871 40 ER32 SHORT 40 ER32 2.0 20.0 25.10 6.0 40.00 M40X1.5 M16 - 0 0.58
DIN69871 50 ER32 SHORT 50 ER32 2.0 20.0 28.60 9.5 40.00 M40X1.5 M24 M22X1.5 0 2.38
DIN69871 50 ER40 SHORT 50 ER40 3.0 26.0 28.60 9.5 50.00 M50X1.5 M24 M28X1.5 0 2.14
(1) Minimum diameter
(2) Maximum diameter
712-713 684-688 559,682-684

Spare Parts
Designation
DIN69871 40 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN69871 50 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN69871 50 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 28X1.5*
* Optional, should be ordered separately
