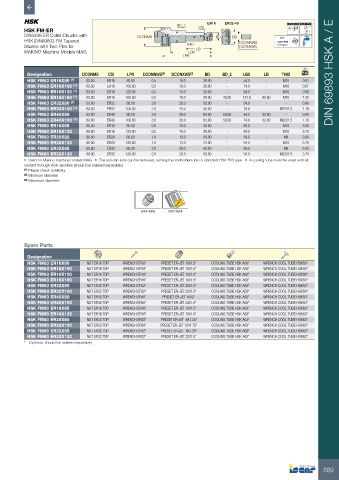

Page 591 - ISCAR(MILLINGCATALOG 38_2021)

ER16 ER32-40 A 0.003 A 58-60 HRc
HSK FM-ER BD_2 CSI
DIN6499 ER Collet Chucks with DCONMS BD BD G2.5
HSK DIN69893 FM Tapered DCONNWS 33,000 RPM
Shanks with Two Pins for THID LB DCONXWS U<1.0 gmm

MAKINO Machine Models MAG LBX
LPR

Designation DCONMS CSI LPR DCONNWS (2) DCONXWS (3) BD BD_2 LBX LB THID kg DIN 69893 HSK A / E
HSK FM63 ER16X80 (1) 63.00 ER16 80.00 0.5 10.0 28.00 - 54.0 - M10 0.81
HSK FM63 ER16X100 (1) 63.00 ER16 100.00 0.5 10.0 28.00 - 74.0 - M10 0.87
HSK FM63 ER16X120 (1) 63.00 ER16 120.00 0.5 10.0 28.00 - 94.0 - M10 0.98
HSK FM63 ER16X160 (1) 63.00 ER16 160.00 0.5 10.0 28.00 40.00 134.0 85.60 M10 1.32
HSK FM63 ER32X80 (1) 63.00 ER32 80.00 2.0 20.0 50.00 - 54.0 - - 0.96
HSK FM63 ER32X100 (1) 63.00 ER32 100.00 2.0 20.0 50.00 - 74.0 - M22X1.5 1.19
HSK FM63 ER40X80 63.00 ER40 80.00 3.0 26.0 63.00 50.00 54.0 32.00 - 0.94
HSK FM63 ER40X100 (1) 63.00 ER40 100.00 3.0 26.0 63.00 50.00 74.0 32.00 M22X1.5 1.16
HSK FM80 ER16X85 80.00 ER16 85.00 0.5 10.0 28.00 - 59.0 - M10 3.00
HSK FM80 ER16X120 80.00 ER16 120.00 0.5 10.0 28.00 - 94.0 - M10 3.70
HSK FM80 ER20X85 80.00 ER20 85.00 1.0 13.0 34.00 - 59.0 - M8 3.00
HSK FM80 ER20X120 80.00 ER20 120.00 1.0 13.0 34.00 - 94.0 - M12 3.70
HSK FM80 ER32X85 80.00 ER32 85.00 2.0 20.0 50.00 - 59.0 - M8 3.00
HSK FM80 ER32X120 80.00 ER32 120.00 2.0 20.0 50.00 - 94.0 - M22X1.5 3.70
• Used on Makino machine models MAG • The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type • A cooling tube must be used with all
coolant through HSK spindles (should be ordered separately)
(1) Please check availbility
(2) Minimum diameter
(3) Maximum diameter

684-688 682-684

Spare Parts

Designation
HSK FM63 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER16X120 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER16X160 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER32X80 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER40X80 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 16X2* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM63 ER40X100 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK FM80 ER16X85 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK FM80 ER16X120 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK FM80 ER20X85 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 8X1.25* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK FM80 ER20X120 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK FM80 ER32X85 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 8X1.25* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK FM80 ER32X120 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
* Optional, should be ordered separately

589
