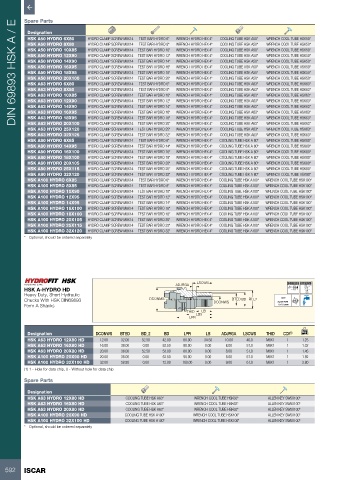

Page 594 - ISCAR(MILLINGCATALOG 38_2021)

Spare Parts
DIN 69893 HSK A / E
Designation
HSK A50 HYDRO 6X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 8X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 8* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 10X85 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 10* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 12X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 12* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 14X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 16X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 18X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A50 HYDRO 20X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A63 HYDRO 6X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 8X80 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 8* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 10X85 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 10* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 12X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 12* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 14X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 16X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 18X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 20X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 25X120 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 25* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 HYDRO 32X125 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 32* WRENCH HYDRO HEX 4* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A80 HYDRO 6X85 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 14X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 16X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 18X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 20X105 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 25X115 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 25* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A80 HYDRO 32X120 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 32* WRENCH HYDRO HEX 4* COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A100 HYDRO 6X85 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 6* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 8X85 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 8* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 10X90 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 10* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 12X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 12* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 14X95 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 14* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 16X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 16* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 18X100 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 18* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 20X105 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 20* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 25X115 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 25* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 HYDRO 32X120 HYDRO CLAMP SCREW M8X14 TEST BAR HYDRO 32* WRENCH HYDRO HEX 4* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
* Optional, should be ordered separately

LSCWS A 0.003 A 58-60 HRc

HSK A-HYDRO HD ADJRGA
Heavy Duty, Short Hydraulic
G2.5
Chucks With HSK DIN69893 DCONMS DCONWS BTED BD BD_2 25,000 RPM
Form A Shanks U<1.0 gmm
THID LB
LBX
LPR
Designation DCONWS BTED BD_2 BD LPR LB ADJRGA LSCWS THID CDI (1) kg
HSK A63 HYDRO 12X80 HD 12.00 32.00 52.50 42.00 80.00 34.50 10.00 46.0 M8X1 1 1.25
HSK A63 HYDRO 16X80 HD 16.00 38.00 0.00 52.50 80.00 0.00 8.00 51.0 M8X1 1 1.32
HSK A63 HYDRO 20X80 HD 20.00 38.00 52.50 53.00 80.00 0.00 8.00 51.0 M8X1 1 1.45
HSK A100 HYDRO 20X90 HD 20.00 38.00 0.00 52.50 90.00 0.00 8.00 51.0 M8X1 1 1.92
HSK A100 HYDRO 32X100 HD 32.00 58.50 0.00 72.00 100.00 0.00 9.00 61.0 M8X1 1 3.80

(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts
Designation
HSK A63 HYDRO 12X80 HD COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* ALLEN KEY SW5X100*
HSK A63 HYDRO 16X80 HD COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* ALLEN KEY SW5X100*
HSK A63 HYDRO 20X80 HD COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* ALLEN KEY SW5X100*
HSK A100 HYDRO 20X90 HD COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* ALLEN KEY SW5X100*
HSK A100 HYDRO 32X100 HD COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* ALLEN KEY SW6X100*
* Optional, should be ordered separately
