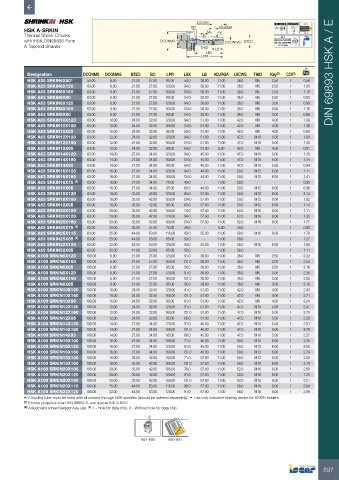

P. 599
LSCWS A 0.003 A 50-52 HRc
ADJRGA
HSK A-SRKIN BD M6 4˚30’
Thermal Shrink Chucks G2.5
with HSK DIN69893 Form DCONMS DCONWS BTED HSK 50,63=25,000 RPM
HSK 100=20,000 RPM
A Tapered Shanks THID LB U<1.0 gmm
LBX
LPR
Designation DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key (2) CDI (3) kg DIN 69893 HSK A / E
HSK A50 SRKIN6X80* 50.00 6.00 21.00 27.00 80.00 54.0 38.00 11.00 36.0 M5 2.50 1 0.56
HSK A63 SRKIN6X120 63.00 6.00 21.00 27.00 120.00 94.0 38.00 11.00 36.0 M5 2.50 1 1.00
HSK A63 SRKIN6X160 63.00 6.00 21.00 27.00 160.00 134.0 38.00 11.00 36.0 M5 2.50 1 1.19
HSK A63 SRKIN6X80 63.00 6.00 21.00 27.00 80.00 54.0 38.00 11.00 36.0 M5 2.50 1 0.83
HSK A63 SRKIN8X120 63.00 8.00 21.00 27.00 120.00 94.0 38.00 11.00 36.0 M6 3.00 1 0.98
HSK A63 SRKIN8X160 63.00 8.00 21.00 27.00 160.00 134.0 38.00 11.00 36.0 M6 3.00 1 1.16
HSK A63 SRKIN8X80 63.00 8.00 21.00 27.00 80.00 54.0 38.00 11.00 36.0 M6 3.00 1 0.88
HSK A63 SRKIN10X120 63.00 10.00 24.00 32.00 120.00 94.0 51.00 11.00 42.0 M8 4.00 1 1.09
HSK A63 SRKIN10X160 63.00 10.00 24.00 32.00 160.00 134.0 51.00 11.00 42.0 M8 4.00 1 1.36
HSK A63 SRKIN10X85 63.00 10.00 24.00 32.00 85.00 59.0 51.00 11.00 42.0 M8 4.00 1 0.89
HSK A63 SRKIN12X120 63.00 12.00 24.00 32.00 120.00 94.0 51.00 11.00 47.0 M10 5.00 1 1.00
HSK A63 SRKIN12X160 63.00 12.00 24.00 32.00 160.00 134.0 51.00 11.00 47.0 M10 5.00 1 1.33
HSK A63 SRKIN12X90 63.00 12.00 24.00 32.00 90.00 64.0 51.00 6.00 42.0 M8 4.00 1 0.91
HSK A63 SRKIN14X120 63.00 14.00 27.00 34.00 120.00 94.0 45.00 11.00 47.0 M10 5.00 1 1.15
HSK A63 SRKIN14X160 63.00 14.00 27.00 34.00 160.00 134.0 45.00 11.00 47.0 M10 5.00 1 1.44
HSK A63 SRKIN14X90 63.00 14.00 27.00 34.00 90.00 64.0 45.00 11.00 47.0 M10 5.00 1 0.94
HSK A63 SRKIN16X120 63.00 16.00 27.00 34.00 120.00 94.0 44.00 11.00 50.0 M12 6.00 1 1.11
HSK A63 SRKIN16X160 63.00 16.00 27.00 34.00 160.00 134.0 44.00 11.00 50.0 M12 6.00 1 1.41
HSK A63 SRKIN16X75 (1) 63.00 16.00 27.00 34.00 75.00 49.0 - 11.00 50.0 - - 1 0.85
HSK A63 SRKIN16X95 63.00 16.00 27.00 34.00 95.00 69.0 44.00 11.00 50.0 M12 6.00 1 0.96
HSK A63 SRKIN18X120 63.00 18.00 33.00 42.00 120.00 94.0 57.00 11.00 50.0 M12 6.00 1 3.14
HSK A63 SRKIN18X160 63.00 18.00 33.00 42.00 160.00 134.0 57.00 11.00 50.0 M12 6.00 1 1.82
HSK A63 SRKIN18X95 63.00 18.00 33.00 42.00 95.00 69.0 57.00 11.00 50.0 M12 6.00 1 1.14
HSK A63 SRKIN20X100 63.00 20.00 33.00 42.00 100.00 74.0 57.00 11.00 52.0 M16 8.00 1 1.11
HSK A63 SRKIN20X120 63.00 20.00 33.00 42.00 120.00 94.0 57.00 11.00 52.0 M16 8.00 1 1.33
HSK A63 SRKIN20X160 63.00 20.00 33.00 42.00 160.00 134.0 57.00 11.00 52.0 M16 8.00 1 1.77
HSK A63 SRKIN20X75 (1) 63.00 20.00 33.00 41.00 75.00 49.0 - 9.00 50.0 - - 1 0.93
HSK A63 SRKIN25X115 63.00 25.00 44.00 53.00 115.00 89.0 55.00 11.00 58.0 M16 8.00 1 1.70
HSK A63 SRKIN25X85 (1) 63.00 25.00 44.00 53.00 85.00 59.0 - 11.00 58.0 - - 1 1.27
HSK A63 SRKIN32X120 63.00 32.00 44.00 53.00 120.00 94.0 55.00 11.00 58.0 M16 8.00 1 1.68
HSK A63 SRKIN32X85 63.00 32.00 44.00 53.00 85.00 59.0 - 11.00 58.0 - - 1 1.11
HSK A100 SRKIN6X120 100.00 6.00 21.00 27.00 120.00 91.0 38.00 11.00 36.0 M5 2.50 1 2.32
HSK A100 SRKIN6X160 100.00 6.00 21.00 27.00 160.00 131.0 38.00 11.00 36.0 M6 3.00 1 2.54
HSK A100 SRKIN6X85 100.00 6.00 21.00 27.00 85.00 56.0 38.00 11.00 36.0 M5 2.50 1 2.18
HSK A100 SRKIN8X120 100.00 8.00 21.00 27.00 120.00 91.0 38.00 11.00 36.0 M6 3.00 1 2.36
HSK A100 SRKIN8X160 100.00 8.00 21.00 27.00 160.00 131.0 38.00 11.00 36.0 M6 3.00 1 2.55
HSK A100 SRKIN8X85 100.00 8.00 21.00 27.00 85.00 56.0 38.00 11.00 36.0 M6 3.00 1 2.16
HSK A100 SRKIN10X120 100.00 10.00 24.00 32.00 120.00 91.0 51.00 11.00 42.0 M8 4.00 1 2.43
HSK A100 SRKIN10X160 100.00 10.00 24.00 32.00 160.00 131.0 51.00 11.00 42.0 M8 4.00 1 2.71
HSK A100 SRKIN10X90 100.00 10.00 24.00 32.00 90.00 61.0 51.00 11.00 42.0 M8 4.00 1 2.24
HSK A100 SRKIN12X120 100.00 12.00 24.00 32.00 120.00 91.0 51.00 11.00 47.0 M10 5.00 1 2.47
HSK A100 SRKIN12X160 100.00 12.00 24.00 32.00 160.00 131.0 51.00 11.00 47.0 M10 5.00 1 2.70
HSK A100 SRKIN12X95 100.00 12.00 24.00 32.00 95.00 66.0 51.00 11.00 47.0 M10 5.00 1 2.28
HSK A100 SRKIN14X120 100.00 14.00 27.00 34.00 120.00 91.0 45.00 11.00 47.0 M10 5.00 1 2.51
HSK A100 SRKIN14X160 100.00 14.00 27.00 34.00 160.00 131.0 45.00 11.00 47.0 M10 5.00 1 2.79
HSK A100 SRKIN14X95 100.00 14.00 27.00 34.00 95.00 66.0 45.00 11.00 47.0 M10 5.00 1 2.27
HSK A100 SRKIN16X100 100.00 16.00 27.00 34.00 100.00 71.0 45.00 11.00 50.0 M12 6.00 1 2.35
HSK A100 SRKIN16X120 100.00 16.00 27.00 34.00 120.00 91.0 45.00 11.00 50.0 M12 6.00 1 2.50
HSK A100 SRKIN16X160 100.00 16.00 27.00 34.00 160.00 131.0 45.00 11.00 50.0 M12 6.00 1 2.74
HSK A100 SRKIN18X100 100.00 18.00 33.00 42.00 100.00 71.0 57.00 11.00 50.0 M12 6.00 1 2.50
HSK A100 SRKIN18X160 100.00 18.00 33.00 42.00 160.00 131.0 57.00 11.00 50.0 M12 6.00 1 3.14
HSK A100 SRKIN20X105 100.00 20.00 33.00 42.00 105.00 76.0 57.00 11.00 52.0 M16 8.00 1 2.50
HSK A100 SRKIN20X120 100.00 20.00 33.00 42.00 120.00 91.0 57.00 11.00 52.0 M16 8.00 1 1.20
HSK A100 SRKIN20X160 100.00 20.00 33.00 42.00 160.00 131.0 57.00 11.00 52.0 M16 8.00 1 3.21
HSK A100 SRKIN25X115 100.00 25.00 44.00 53.00 115.00 86.0 57.00 11.00 58.0 M16 8.00 1 3.04
HSK A100 SRKIN32X120 100.00 32.00 44.00 53.00 120.00 91.0 57.00 11.00 58.0 M16 8.00 1 2.99
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Use only inductive heating device for SRKIN holders
(1) Shorter projection than DIN 69882-8, use special IND S DISC
(2) Adjustment screw hexagon key size (1) 1 - Hole for data chip, 0 - Without hole for data chip
