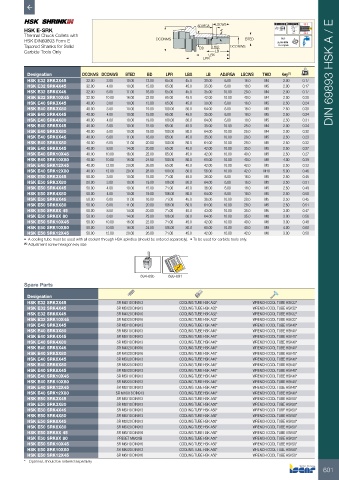

Page 603 - ISCAR(MILLINGCATALOG 38_2021)

ADJRGA LSCWS A 0.003 A 50-52 HRc
HSK E-SRK 4˚
Thermal Chuck Collets with
G2.5
HSK DIN69893 Form E DCONMS BTED 25,000 RPM
Tapered Shanks for Solid BD THID DCONWS U<1.0 gmm
Carbide Tools Only LBX LB
LPR

Designation DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key (1) kg DIN 69893 HSK A / E
HSK E32 SRK3X45 32.00 3.00 10.00 13.00 65.00 45.0 30.00 6.00 16.0 M4 2.00 0.17
HSK E32 SRK4X45 32.00 4.00 10.00 15.00 65.00 45.0 35.00 6.00 18.0 M5 2.00 0.17
HSK E32 SRK6X45 32.00 6.00 11.00 16.00 65.00 45.0 35.00 10.00 28.0 M4 2.00 0.17
HSK E32 SRK10X45 32.00 10.00 16.00 22.00 65.00 45.0 42.00 10.00 40.0 M4 2.00 0.20
HSK E40 SRK3X45 40.00 3.00 10.00 13.00 65.00 45.0 30.00 6.00 16.0 M5 2.50 0.24
HSK E40 SRK3X80 40.00 3.00 10.00 19.00 100.00 80.0 64.00 6.00 16.0 M5 2.50 0.30
HSK E40 SRK4X45 40.00 4.00 10.00 15.00 65.00 45.0 35.00 6.00 18.0 M5 2.50 0.24
HSK E40 SRK4X80 40.00 4.00 10.00 19.00 100.00 80.0 64.00 6.00 18.0 M5 2.50 0.31
HSK E40 SRK5X45 40.00 5.00 10.00 15.00 65.00 45.0 35.00 10.00 25.0 M4 2.00 0.24
HSK E40 SRK5X80 40.00 5.00 10.00 19.00 100.00 80.0 64.00 10.00 25.0 M4 2.00 0.32
HSK E40 SRK6X45 40.00 6.00 11.00 16.00 65.00 45.0 35.00 10.00 28.0 M5 2.50 0.23
HSK E40 SRK6X80 40.00 6.00 11.00 20.00 100.00 80.0 64.00 10.00 28.0 M5 2.50 0.32
HSK E40 SRK8X45 40.00 8.00 14.00 20.00 65.00 45.0 42.00 10.00 35.0 M5 2.50 0.27
HSK E40 SRK10X45 40.00 10.00 16.00 22.00 65.00 45.0 42.00 10.00 40.0 M5 2.50 0.27
HSK E40 SRK10X80 40.00 10.00 16.00 24.50 100.00 80.0 60.00 10.00 40.0 M8 4.00 0.39
HSK E40 SRK12X45 40.00 12.00 20.00 26.00 65.00 45.0 42.00 10.00 42.0 M5 2.50 0.32
HSK E40 SRK12X80 40.00 12.00 20.00 28.00 100.00 80.0 56.00 10.00 42.0 M10 5.00 0.46
HSK E50 SRK3X45 50.00 3.00 10.00 15.00 71.00 45.0 36.00 6.00 16.0 M5 2.50 0.45
HSK E50 SRK3X80 50.00 3.00 10.00 19.00 106.00 80.0 64.00 6.00 16.0 M5 2.50 0.51
HSK E50 SRK4X45 50.00 4.00 10.00 15.00 71.00 45.0 36.00 6.00 18.0 M5 2.50 0.49
HSK E50 SRK4X80 50.00 4.00 10.00 19.00 106.00 80.0 64.00 6.00 18.0 M5 2.50 0.50
HSK E50 SRK6X45 50.00 6.00 11.00 16.00 71.00 45.0 36.00 10.00 28.0 M5 2.50 0.45
HSK E50 SRK6X80 50.00 6.00 11.00 20.00 106.00 80.0 64.00 10.00 28.0 M5 2.50 0.51
HSK E50 SRK8X 45 50.00 8.00 14.00 20.00 71.00 45.0 43.00 10.00 35.0 M6 3.00 0.47
HSK E50 SRK8X 80 50.00 8.00 14.00 23.00 106.00 80.0 64.00 10.00 35.0 M6 3.00 0.56
HSK E50 SRK10X45 50.00 10.00 16.00 22.00 71.00 45.0 42.00 10.00 40.0 M6 3.00 0.48
HSK E50 SRK10X80 50.00 10.00 16.00 24.50 106.00 80.0 60.00 10.00 40.0 M8 4.00 0.60
HSK E50 SRK12X45 50.00 12.00 20.00 26.00 71.00 45.0 42.00 10.00 42.0 M6 3.00 0.50
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • To be used for carbide tools only.
(1) Adjustment screw hexagon key size

694-695 689-691
Spare Parts
Designation
HSK E32 SRK3X45 SR M4X10 DIN913 COOLING TUBE HSK A32* WRENCH COOL TUBE HSK32*
HSK E32 SRK4X45 SR M5X20 DIN913 COOLING TUBE HSK A32* WRENCH COOL TUBE HSK32*
HSK E32 SRK6X45 SR M4X20 DIN916 COOLING TUBE HSK A32* WRENCH COOL TUBE HSK32*
HSK E32 SRK10X45 SR M4X20 DIN916 COOLING TUBE HSK A32* WRENCH COOL TUBE HSK32*
HSK E40 SRK3X45 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK3X80 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK4X45 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK4X80 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK5X45 SR M4X20 DIN916 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK5X80 SR M4X20 DIN916 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK6X45 SR M5X20 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK6X80 SR M5X20 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK8X45 SR M5X20 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK10X45 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK10X80 SR M8X20 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK12X45 SR M5X10 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SRK12X80 SR M10X18 DIN913 COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E50 SRK3X45 SR M5X10 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK3X80 SR M5X10 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK4X45 SR M5X10 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK4X80 SR M5X10 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK6X45 SR M5X20 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK6X80 SR M5X20 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK8X 45 SR M6X10 DIN916 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK8X 80 PRESET M6X20B COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK10X45 SR M6X10 DIN916 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK10X80 SR M8X20 DIN913 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK E50 SRK12X45 SR M6X10 DIN916 COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
* Optional, should be ordered separately
601
