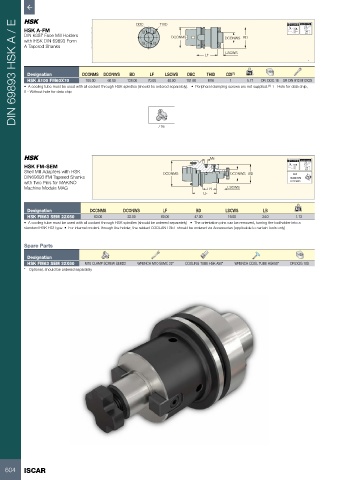

DBC THID A 0.005 A 58-60 HRc
DIN 69893 HSK A / E
HSK A-FM
DIN 6357 Face Mill Holders DCONMS DCONWS BD
with HSK DIN 69893 Form
A Tapered Shanks
LSCWS
LF
.

Designation DCONMS DCONWS BD LF LSCWS DBC THID CDI (1) kg
HSK A100 FM60X70 100.00 60.00 128.00 70.00 40.00 101.60 M16 1 5.77 DR. DOG 1E SR DIN 912 M12X25
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • Peripheral clamping screws are not supplied. (1) 1 - Hole for data chip,
0 - Without hole for data chip

716

M6 A 0.005 A 58-60 HRc

HSK FM-SEM
Shell Mill Adapters with HSK DCONMS DCONWS BD G2.5
DIN69893 FM Tapered Shanks 33,000 RPM
with Two Pins for MAKINO U<1.0 gmm
Machine Models MAG LB LSCWS
LF

Designation DCONMS DCONWS LF BD LSCWS LB kg
HSK FM63 SEM 22X60 63.00 22.00 60.00 47.00 19.00 34.0 1.13
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • The orientation pins can be removed, turning the toolholder into a
standard HSK F63 type • For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only)

Spare Parts

Designation
HSK FM63 SEM 22X60 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* DR.DOG 10S
* Optional, should be ordered separately
