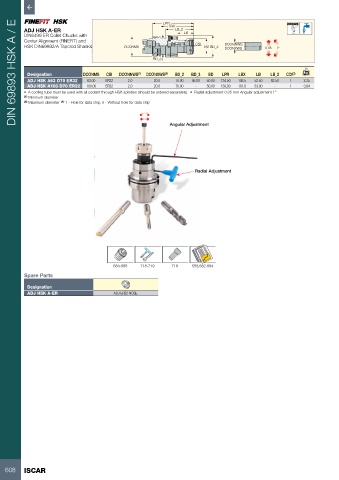

Page 610 - ISCAR(MILLINGCATALOG 38_2021)

LPR
DIN 69893 HSK A / E
LBX LB_2 58-60 HRc
ADJ HSK A-ER
DIN6499 ER Collet Chucks with LB
Center Alignment (FINEFIT) and
HSK DIN69893/A Tapered Shanks DCONMS CSI BD BD_2 DCONNWS 0.05 1°
DCONXWS
BD_3

Designation DCONMS CSI DCONNWS (1) DCONXWS (2) BD_2 BD_3 BD LPR LBX LB LB_2 CDI (3) kg
ADJ HSK A63 D70 ER32 63.00 ER32 2.0 20.0 70.00 46.00 50.00 134.50 108.5 52.50 92.50 1 2.25
ADJ HSK A100 D70 ER32 100.00 ER32 2.0 20.0 70.00 - 50.00 130.00 101.0 53.00 - 1 3.64
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • Radial adjustment 0.05 mm Angular adjustment 1°
(1) Minimum diameter
(2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip

Angular Adjustment

Radial Adjustment

684-688 718-719 718 558,682-684

Spare Parts
Designation
ADJ HSK A-ER ADJ ER32 NOSE

608 ISCAR
