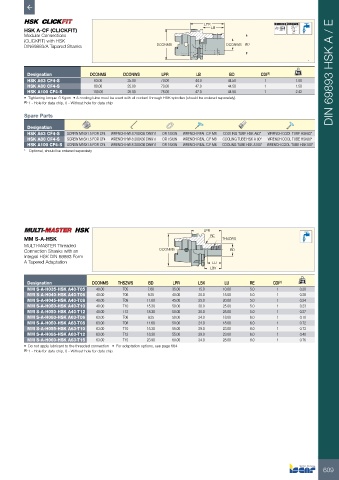

Page 611 - ISCAR(MILLINGCATALOG 38_2021)
P. 611
LPR LB A 0.003 A 58-60 HRc
HSK A-CF (CLICKFIT)
Modular Connections
(CLICKFIT) with HSK
DIN69893/A Tapered Shanks DCONMS DCONWS BD
.
Designation DCONMS DCONWS LPR LB BD CDI (1) kg DIN 69893 HSK A / E
HSK A63 CF4-S 63.00 25.00 70.00 44.0 44.50 1 1.00
HSK A80 CF4-S 80.00 25.00 73.00 47.0 44.50 1 1.50
HSK A100 CF4-S 100.00 25.00 76.00 47.0 44.50 1 2.42
• Tightening torque: 6 Kgxm • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63 CF4-S SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A80 CF4-S SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8 COOLING TUBE HSK A 80* WRENCH COOL TUBE HSK80*
HSK A100 CF4-S SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 OR 15X3N WRENCH REAL C.F M8 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
* Optional, should be ordered separately
LPR
MM S-A-HSK RE THSZWS
MULTI-MASTER Threaded
Connection Shanks with an DCONMS BD
Integral HSK DIN 69893 Form
A Tapered Adaptation LU
LBX
Designation DCONMS THSZWS BD LPR LBX LU RE CDI (1) kg
MM S-A-H035-HSK A40-T05 40.00 T05 7.60 35.00 15.0 10.00 5.0 1 0.20
MM S-A-H040-HSK A40-T06 40.00 T06 9.25 40.00 20.0 15.00 5.0 1 0.28
MM S-A-H045-HSK A40-T08 40.00 T08 11.60 45.00 25.0 20.00 5.0 1 0.24
MM S-A-H050-HSK A40-T10 40.00 T10 15.30 50.00 30.0 25.00 5.0 1 0.23
MM S-A-H050-HSK A40-T12 40.00 T12 18.30 50.00 30.0 25.00 5.0 1 0.27
MM S-A-H050-HSK A63-T06 63.00 T06 9.25 50.00 24.0 18.00 6.0 1 0.70
MM S-A-H050-HSK A63-T08 63.00 T08 11.60 50.00 24.0 18.00 6.0 1 0.72
MM S-A-H055-HSK A63-T10 63.00 T10 15.30 55.00 29.0 23.00 6.0 1 0.73
MM S-A-H055-HSK A63-T12 63.00 T12 18.30 55.00 29.0 23.00 6.0 1 0.40
MM S-A-H060-HSK A63-T15 63.00 T15 23.90 60.00 34.0 28.00 6.0 1 0.76
• Do not apply lubricant to the threaded connection • For adaptation options, see page 664
(1) 1 - Hole for data chip, 0 - Without hole for data chip
609
