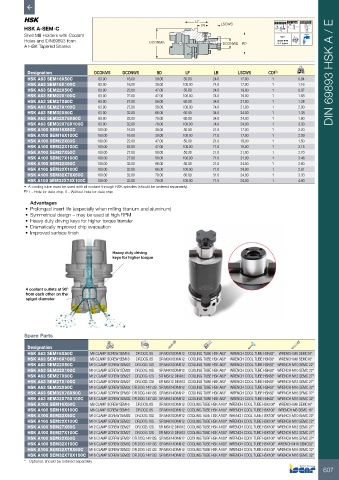

Page 609 - ISCAR(MILLINGCATALOG 38_2021)

LF LSCWS A 0.005 A AT3 Taper 58-60 HRc

HSK A-SEM-C LB
Shell Mill Holders with Coolant G2.5
Holes and DIN69893 form DCONMS DCONWS BD 20,000 RPM
A HSK Tapered Shanks U<1.0 gmm

Designation DCONMS DCONWS BD LF LB LSCWS CDI (1) kg DIN 69893 HSK A / E
HSK A63 SEM16X50C 63.00 16.00 38.00 50.00 24.0 17.00 1 0.84
HSK A63 SEM16X100C 63.00 16.00 38.00 100.00 74.0 17.00 1 1.16
HSK A63 SEM22X50C 63.00 22.00 47.00 50.00 24.0 19.00 1 0.97
HSK A63 SEM22X100C 63.00 22.00 47.00 100.00 74.0 19.00 1 1.68
HSK A63 SEM27X60C 63.00 27.00 58.00 60.00 34.0 21.00 1 1.28
HSK A63 SEM27X100C 63.00 27.00 58.00 100.00 74.0 21.00 1 2.00
HSK A63 SEM32X60C 63.00 32.00 66.00 60.00 34.0 24.00 1 1.38
HSK A63 SEM32X78X60C 63.00 32.00 78.00 60.00 34.0 24.00 1 1.90
HSK A63 SEM32X78X100C 63.00 32.00 78.00 100.00 74.0 24.00 1 3.33
HSK A100 SEM16X50C 100.00 16.00 38.00 50.00 21.0 17.00 1 2.20
HSK A100 SEM16X100C 100.00 16.00 38.00 100.00 71.0 17.00 1 2.59
HSK A100 SEM22X50C 100.00 22.00 47.00 50.00 21.0 19.00 1 1.50
HSK A100 SEM22X100C 100.00 22.00 47.00 100.00 71.0 19.00 1 3.15
HSK A100 SEM27X50C 100.00 27.00 58.00 50.00 21.0 21.00 1 2.70
HSK A100 SEM27X100C 100.00 27.00 58.00 100.00 71.0 21.00 1 3.46
HSK A100 SEM32X50C 100.00 32.00 66.00 50.00 21.0 24.00 1 2.60
HSK A100 SEM32X100C 100.00 32.00 66.00 100.00 71.0 24.00 1 2.81
HSK A100 SEM32X78X60C 100.00 32.00 78.00 60.00 31.0 24.00 1 3.33
HSK A100 SEM32X78X100C 100.00 32.00 78.00 100.00 71.0 24.00 1 4.80
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Advantages
• Prolonged insert life (especially when milling titanium and aluminum)
• Symmetrical design – may be used at high RPM
• Heavy duty driving keys for higher torque transfer
• Dramatically improved chip evacuation
• Improved surface finish

Heavy duty driving
keys for higher torque

4 coolant outlets at 90°
from each other on the
spigot diameter

Spare Parts

Designation
HSK A63 SEM16X50C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M8 SEMC16*
HSK A63 SEM16X100C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M8 SEMC16*
HSK A63 SEM22X50C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M10 SEMC 22*
HSK A63 SEM22X100C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M10 SEMC 22*
HSK A63 SEM27X60C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X12 DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M12 SEMC 27*
HSK A63 SEM27X100C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X12 DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M12 SEMC 27*
HSK A63 SEM32X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M16 SEMC 32*
HSK A63 SEM32X78X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M16 SEMC 32*
HSK A63 SEM32X78X100C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* WRENCH M16 SEMC 32*
HSK A100 SEM16X50C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M8 SEMC16*
HSK A100 SEM16X100C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M8 SEMC 16*
HSK A100 SEM22X50C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M10 SEMC 22*
HSK A100 SEM22X100C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M10 SEMC 22*
HSK A100 SEM27X50C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X12 DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M12 SEMC 27*
HSK A100 SEM27X100C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X12 DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M12 SEMC 27*
HSK A100 SEM32X50C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M16 SEMC 32*
HSK A100 SEM32X100C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M16 SEMC32*
HSK A100 SEM32X78X60C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M16 SEMC 32*
HSK A100 SEM32X78X100C M16 CLAMP SCREW SEM32 DR.DOG 14X13S SR M5X14DIN912 COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* WRENCH M16 SEMC 32*
* Optional, should be ordered separately
