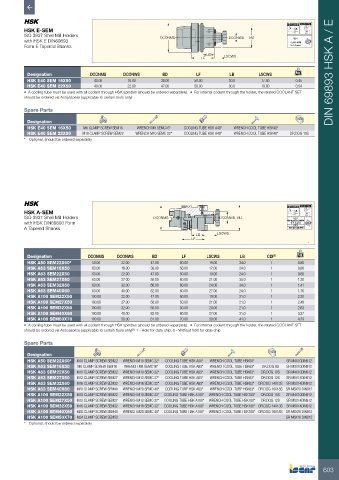

A 0.005 A 58-60 HRc
HSK E-SEM
ISO 3937 Shell Mill Holders DCONMS DCONWS BD
G2.5
with HSK E DIN69893 15,000 RPM
Form E Tapered Shanks U<1.0 gmm
LB
LF LSCWS

Designation DCONMS DCONWS BD LF LB LSCWS kg DIN 69893 HSK A / E
HSK E40 SEM 16X50 40.00 16.00 38.00 50.00 30.0 17.00 0.45
HSK E40 SEM 22X50 40.00 22.00 47.00 50.00 30.0 19.00 0.54
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For internal coolant through the holder, the related COOLANT SET
should be ordered via Accessories (applicable to certain tools only)

Spare Parts

Designation
HSK E40 SEM 16X50 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40*
HSK E40 SEM 22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* DR.DOG 10S
* Optional, should be ordered separately

A 0.005 A 58-60 HRc

HSK A-SEM
ISO 3937 Shell Mill Holders DCONMS DCONWS BD G2.5
with HSK DIN69893 Form HSK 40,50,63=15,000RPM
U<1.0 gmm
G6.3
A Tapered Shanks HSK 100=12,000 RPM
LB LSCWS
LF
.
Designation DCONMS DCONWS BD LF LSCWS LB CDI (1) kg
HSK A50 SEM22X60* 50.00 22.00 47.00 60.00 19.00 34.0 1 0.80
HSK A63 SEM16X50 63.00 16.00 38.00 50.00 17.00 24.0 1 0.86
HSK A63 SEM22X50 63.00 22.00 47.00 50.00 19.00 24.0 1 0.60
HSK A63 SEM27X60 63.00 27.00 58.00 60.00 21.00 34.0 1 1.30
HSK A63 SEM32X60 63.00 32.00 66.00 60.00 24.00 34.0 1 1.41
HSK A63 SEM40X60 63.00 40.00 82.00 60.00 27.00 24.0 1 1.76
HSK A100 SEM22X50 100.00 22.00 47.00 50.00 19.00 21.0 1 2.30
HSK A100 SEM27X50 100.00 27.00 58.00 50.00 21.00 21.0 1 2.48
HSK A100 SEM32X50 100.00 32.00 66.00 50.00 24.00 21.0 1 2.63
HSK A100 SEM40X60 100.00 40.00 82.00 60.00 27.00 31.0 1 3.37
HSK A100 SEM50X70 100.00 50.00 81.00 70.00 30.00 41.0 1 4.29
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • For internal coolant through the holder, the related COOLANT SET
should be ordered via Accessories (applicable to certain tools only) (1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
HSK A50 SEM22X60* M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* SR M4X10DIN912
HSK A63 SEM16X50 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 8S SR M3X10DIN912
HSK A63 SEM22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 10S SR M4X10DIN912
HSK A63 SEM27X60 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 12S SR M5X14DIN912
HSK A63 SEM32X60 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 14X13S SR M5X14DIN912
HSK A63 SEM40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* DR.DOG 16X18S SR M6X20 DIN912
HSK A100 SEM22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 10S SR M4X10DIN912
HSK A100 SEM27X50 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 12S SR M5X14DIN912
HSK A100 SEM32X50 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 14X13S SR M5X14DIN912
HSK A100 SEM40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* DR.DOG 16X18S SR M6X20 DIN912
HSK A100 SEM50X70 M24 CLAMP SCREW SEM50 SR M6X16 DIN912
* Optional, should be ordered separately
