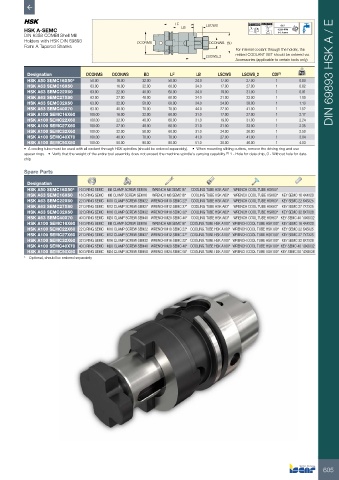

Page 607 - ISCAR(MILLINGCATALOG 38_2021)

LF A 0.005 A 58-60 HRc
G2.5
HSK A-SEMC LB LSCWS 15,000 RPM
DIN 6358 COMBI Shell Mill U<1.0 gmm
Holders with HSK DIN 69893 DCONMS DCONWS BD
Form A Tapered Shanks
For internal coolant through the holder, the
LSCWS_2 related COOLANT SET should be ordered via
Accessories (applicable to certain tools only)

Designation DCONMS DCONWS BD LF LB LSCWS LSCWS_2 CDI (1) kg DIN 69893 HSK A / E
HSK A50 SEMC16X50* 50.00 16.00 32.00 50.00 24.0 17.00 27.00 1 0.80
HSK A63 SEMC16X60 63.00 16.00 32.00 60.00 34.0 17.00 27.00 1 0.82
HSK A63 SEMC22X60 63.00 22.00 40.00 60.00 34.0 19.00 31.00 1 0.91
HSK A63 SEMC27X60 63.00 27.00 48.00 60.00 34.0 21.00 33.00 1 1.00
HSK A63 SEMC32X60 63.00 32.00 58.00 60.00 34.0 24.00 38.00 1 1.13
HSK A63 SEMC40X70 63.00 40.00 70.00 70.00 44.0 27.00 41.00 1 1.52
HSK A100 SEMC16X60 100.00 16.00 32.00 60.00 31.0 17.00 27.00 1 2.17
HSK A100 SEMC22X60 100.00 22.00 40.00 60.00 31.0 19.00 31.00 1 2.24
HSK A100 SEMC27X60 100.00 27.00 48.00 60.00 31.0 21.00 33.00 1 2.35
HSK A100 SEMC32X60 100.00 32.00 58.00 60.00 31.0 24.00 38.00 1 2.50
HSK A100 SEMC40X70 100.00 40.00 70.00 70.00 41.0 27.00 41.00 1 3.04
HSK A100 SEMC50X80 100.00 50.00 90.00 80.00 51.0 30.00 46.00 1 4.03
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). • When mounting slitting cutters, remove the driving ring and use
spacer rings. • Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. (1) 1 - Hole for data chip, 0 - Without hole for data
chip

Spare Parts

Designation
HSK A50 SEMC16X50* 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50*
HSK A63 SEMC16X60 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* KEY SEMC 16 4X4X20
HSK A63 SEMC22X60 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* KEY SEMC 22 6X6X25
HSK A63 SEMC27X60 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* KEY SEMC 27 7X7X25
HSK A63 SEMC32X60 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* KEY SEMC 32 8X7X28
HSK A63 SEMC40X70 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* KEY SEMC 40 10X8X32
HSK A100 SEMC16X60 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 16 4X4X20
HSK A100 SEMC22X60 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 22 6X6X25
HSK A100 SEMC27X60 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 27 7X7X25
HSK A100 SEMC32X60 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 32 8X7X28
HSK A100 SEMC40X70 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 40 10X8X32
HSK A100 SEMC50X80 50 D.RING SEMC M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* KEY SEMC 50 12X8X36
* Optional, should be ordered separately

605
