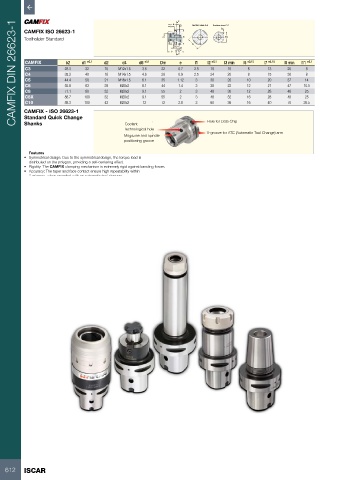

Page 614 - ISCAR(MILLINGCATALOG 38_2021)

CAMFIX DIN 26623-1
C
l8 A Section view A-A Section view C-C
l7 2e
CAMFIX ISO 26623-1 d4
Toolholder Standard d2 d1 Dm
d5 b2
l1
l11 A
l6
l2 l3
C
CAMFIX b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1
C3 28.3 32 15 M12x1.5 3.6 22 0.7 2.5 19 15 6 13 25 8
C4 35.3 40 18 M14x1.5 4.6 28 0.9 2.5 24 20 8 15 30 8
C5 44.4 50 21 M16x1.5 6.1 35 1.12 3 30 20 10 20 37 14
C6 55.8 63 28 M20x2 8.1 44 1.4 3 38 22 12 27 47 15.5
C8 71.1 80 32 M20x2 9.1 55 2 3 48 30 12 28 48 25
C8X 88.7 100 32 M20x2 9.1 55 2 3 48 32 16 28 48 25
C10 88.3 100 43 M20x2 12 72 2.8 3 60 36 16 40 70 26.5
CAMFIX - ISO 26623-1
Standard Quick Change
Shanks Coolant Hole for Data Chip
technological hole
V-groove for ATC (Automatic Tool Change) arm
Magazine and spindle
positioning groove
Features
• Symmetrical design: Due to the symmetrical design, the torque load is
distributed on the polygon, providing a self-centering effect.
• Rigidity: The CAMFIX clamping mechanism is extremely rigid against bending forces.
• Accuracy: The taper and face contact ensure high repeatability within
2 microns, when operated with an automatic tool changer.
