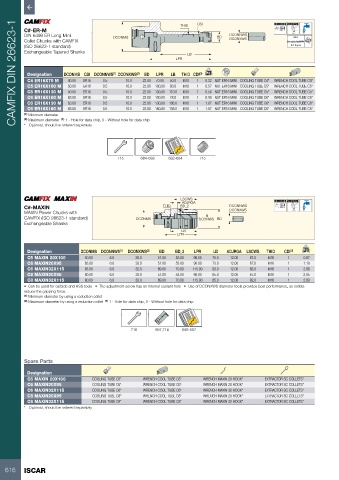

Page 618 - ISCAR(MILLINGCATALOG 38_2021)

CSI
CAMFIX DIN 26623-1
C#-ER-M THID A 0.003 A 58-60 HRc
DIN 6499 ER Long Mini DCONMS BD DCONNWS G2.5
Collet Chucks with CAMFIX DCONXWS Size 50,63=20,000RPM
(ISO 26623-1 standard) U<1.0 gmm
Exchangeable Tapered Shanks LB
LPR

Designation DCONMS CSI DCONNWS (1) DCONXWS (2) BD LPR LB THID CDI (3) kg
C4 ER16X70 M 40.00 ER16 0.5 10.0 22.00 70.00 50.0 M10 1 0.32 NUT ER16 MINI COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 ER16X100 M 50.00 ER16 0.5 10.0 22.00 100.00 80.0 M10 1 0.57 NUT ER16 MINI COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER16X130 M 50.00 ER16 0.5 10.0 22.00 130.00 110.0 M10 1 0.56 NUT ER16 MINI COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 ER16X100 M 63.00 ER16 0.5 10.0 22.00 100.00 78.0 M10 1 0.90 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER16X130 M 63.00 ER16 0.5 10.0 22.00 130.00 108.0 M10 1 1.07 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER16X160 M 63.00 ER16 0.5 10.0 22.00 160.00 138.0 M10 1 1.07 NUT ER16 MINI COOLING TUBE C6* WRENCH COOL TUBE C6*
(1) Minimum diameter
(2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip
* Optional, should be ordered separately

715 684-688 682-684 715

LSCWS A 0.003 A 58-60 HRc
ADJRGA
C#-MAXIN THID BD_2 DCONNWS
DCONXWS
MAXIN Power Chucks with
CAMFIX (ISO 26623-1 standard) DCONMS DCONWS BD
Exchangeable Shanks
LB
LPR

Designation DCONMS DCONNWS (1) DCONXWS (2) BD BD_2 LPR LB ADJRGA LSCWS THID CDI (3) kg
C5 MAXIN 20X100 50.00 6.0 20.0 51.00 53.00 96.00 75.0 12.00 67.0 M16 1 0.87
C6 MAXIN20X95 63.00 6.0 20.0 51.00 53.00 96.00 73.0 12.00 67.0 M16 1 1.10
C6 MAXIN32X115 63.00 6.0 32.0 69.00 70.00 115.00 93.0 12.00 82.0 M16 1 2.88
C8 MAXIN20X95 80.00 6.0 20.0 51.00 53.00 96.00 65.0 12.00 67.0 M16 1 2.05
C8 MAXIN32X115 80.00 6.0 32.0 69.00 70.00 115.00 85.0 12.00 82.0 M16 1 2.83
• Can be used for carbide and HSS tools • The adjustment screw has an internal coolant hole • Use of DCONXWS diameter tools provides best performance, as collets
reduce the gripping force.
(1) Minimum diameter by using a reduction collet
(2) Maximum diameter by using a reduction collet (1) 1 - Hole for data chip, 0 - Without hole for data chip

716 697,718 556-557

Spare Parts

Designation
C5 MAXIN 20X100 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
C6 MAXIN20X95 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
C6 MAXIN32X115 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
C8 MAXIN20X95 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
C8 MAXIN32X115 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
* Optional, should be ordered separately

616 ISCAR
