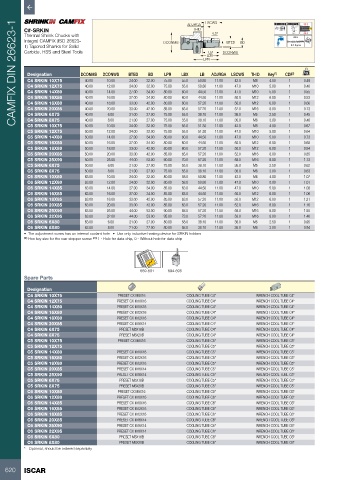

Page 622 - ISCAR(MILLINGCATALOG 38_2021)
P. 622
LSCWS
CAMFIX DIN 26623-1
ADJRGA A 0.003 A 50-52 HRc
C#-SRKIN THID
Thermal Shrink Chucks with 4.5° G2.5
Integral CAMFIX (ISO 26623- DCONMS BTED BD Size 50,63=20,000RPM
1) Tapered Shanks for Solid U<1.0 gmm
Carbide, HSS and Steel Tools LB DCONWS
LBX
LPR
Designation DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key (1) CDI (2) kg
C4 SRKIN 10X75 40.00 10.00 24.00 32.00 75.00 55.0 50.80 11.00 42.0 M8 4.00 1 0.49
C4 SRKIN 12X75 40.00 12.00 24.00 32.00 75.00 55.0 50.80 11.00 47.0 M10 5.00 1 0.48
C4 SRKIN 14X80 40.00 14.00 27.00 34.00 80.00 60.0 44.50 11.00 47.0 M10 5.00 1 0.55
C4 SRKIN 16X80 40.00 16.00 27.00 34.00 80.00 60.0 44.50 11.00 50.0 M12 6.00 1 0.53
C4 SRKIN 18X80 40.00 18.00 33.00 42.00 80.00 60.0 57.20 11.00 50.0 M12 6.00 1 0.66
C4 SRKIN 20X85 40.00 20.00 33.00 42.00 85.00 65.0 57.20 11.00 52.0 M16 8.00 1 0.13
C4 SRKIN 6X75 40.00 6.00 21.00 27.00 75.00 55.0 38.10 11.00 36.0 M5 2.50 1 0.45
C4 SRKIN 8X75 40.00 8.00 21.00 27.00 75.00 55.0 38.10 11.00 36.0 M6 3.00 1 0.46
C5 SRKIN 10X75 50.00 10.00 24.00 32.00 75.00 55.0 51.30 11.00 42.0 M8 4.00 1 0.67
C5 SRKIN 12X75 50.00 12.00 24.00 32.00 75.00 55.0 51.30 11.00 47.0 M10 5.00 1 0.64
C5 SRKIN 14X80 50.00 14.00 27.00 34.00 80.00 60.0 44.50 11.00 47.0 M10 5.00 1 0.73
C5 SRKIN 16X80 50.00 16.00 27.00 34.00 80.00 60.0 44.50 11.00 50.0 M12 6.00 1 0.68
C5 SRKIN 18X80 50.00 18.00 33.00 42.00 80.00 60.0 57.20 11.00 50.0 M12 6.00 1 0.84
C5 SRKIN 20X85 50.00 20.00 33.00 42.00 85.00 65.0 57.20 11.00 52.0 M16 8.00 1 0.85
C5 SRKIN 25X90 50.00 25.00 44.00 53.00 90.00 70.0 57.20 11.00 58.0 M16 8.00 1 1.13
C5 SRKIN 6X75 50.00 6.00 21.00 27.00 75.00 55.0 38.10 11.00 36.0 M5 2.50 1 0.62
C5 SRKIN 8X75 50.00 8.00 21.00 27.00 75.00 55.0 38.10 11.00 36.0 M6 3.00 1 0.63
C6 SRKIN 10X80 63.00 10.00 24.00 32.00 80.00 58.0 50.80 11.00 42.0 M8 4.00 1 1.07
C6 SRKIN 12X80 63.00 12.00 24.00 32.00 80.00 58.0 50.80 11.00 47.0 M10 5.00 1 1.01
C6 SRKIN 14X85 63.00 14.00 27.00 34.00 85.00 63.0 44.50 11.00 47.0 M10 5.00 1 1.08
C6 SRKIN 16X85 63.00 16.00 27.00 34.00 85.00 63.0 44.50 11.00 50.0 M12 6.00 1 1.06
C6 SRKIN 18X85 63.00 18.00 33.00 42.00 85.00 63.0 57.20 11.00 50.0 M12 6.00 1 1.21
C6 SRKIN 20X85 63.00 20.00 33.00 42.00 85.00 63.0 57.20 11.00 52.0 M16 8.00 1 1.16
C6 SRKIN 25X90 63.00 25.00 44.00 53.00 90.00 68.0 57.20 11.00 58.0 M16 8.00 1 1.50
C6 SRKIN 32X95 63.00 32.00 44.00 53.00 95.00 73.0 57.20 11.00 58.0 M16 8.00 1 1.46
C6 SRKIN 6X80 63.00 6.00 21.00 27.00 80.00 58.0 38.10 11.00 36.0 M5 2.50 1 0.95
C6 SRKIN 8X80 63.00 8.00 21.00 27.00 80.00 58.0 38.10 11.00 36.0 M6 3.00 1 0.94
• The adjustment screw has an internal coolant hole • Use only inductive heating device for SRKIN holders
(1) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip
689-691 694-695
Spare Parts
Designation
C4 SRKIN 10X75 PRESET CX M8X16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 12X75 PRESET CX M10X16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 14X80 PRESET CX M10X16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 16X80 PRESET CX M12X16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 18X80 PRESET CX M12X16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 20X85 PRESET CX M16X14 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 6X75 PRESET M5X18B COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SRKIN 8X75 PRESET M6X20B COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 SRKIN 10X75 PRESET CX M8X16 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 12X75 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 14X80 PRESET CX M10X16 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 16X80 PRESET CX M12X16 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 18X80 PRESET CX M12X16 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 20X85 PRESET CX M16X14 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 25X90 PRESET CX M16X14 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 6X75 PRESET M5X18B COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SRKIN 8X75 PRESET M6X20B COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 SRKIN 10X80 PRESET CX M8X16 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 12X80 PRESET CX M10X16 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 14X85 PRESET CX M10X16 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 16X85 PRESET CX M12X16 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 18X85 PRESET CX M12X16 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 20X85 PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 25X90 PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 32X95 PRESET CX M16X14 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 6X80 PRESET M5X18B COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SRKIN 8X80 PRESET M6X20B COOLING TUBE C6* WRENCH COOL TUBE C6*
* Optional, should be ordered separately
