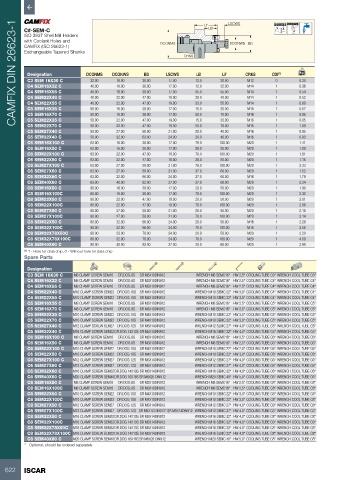

Page 624 - ISCAR(MILLINGCATALOG 38_2021)

LF LSCWS A 0.005 A 58-60 HRc
CAMFIX DIN 26623-1
C#-SEM-C LB
ISO 3937 Shell Mill Holders
with Coolant Holes and DCONMS DCONWS BD
CAMFIX (ISO 26623-1)
Exchangeable Tapered Shanks
CRKS

Designation DCONMS DCONWS BD LSCWS LB LF CRKS CDI (1) kg
C3 SEM 16X30 C 32.00 16.00 38.00 17.00 13.0 30.00 M12 0 0.30
C4 SEM16X32 C 40.00 16.00 38.00 17.00 12.0 32.00 M14 1 0.36
C4 SEM16X55 C 40.00 16.00 38.00 17.00 35.0 55.00 M14 1 0.54
C4 SEM22X40 C 40.00 22.00 47.00 19.00 20.0 40.00 M14 1 0.52
C4 SEM22X55 C 40.00 22.00 47.00 19.00 33.0 55.00 M14 1 0.80
C5 SEM16X35 C 50.00 16.00 38.00 17.00 15.0 35.00 M16 1 0.57
C5 SEM16X70 C 50.00 16.00 38.00 17.00 50.0 70.00 M16 1 0.85
C5 SEM22X35 C 50.00 22.00 47.00 19.00 15.0 35.00 M16 1 0.65
C5 SEM22X70 C 50.00 22.00 47.00 19.00 50.0 70.00 M16 1 1.09
C5 SEM27X40 C 50.00 27.00 58.00 21.00 20.0 40.00 M16 1 0.85
C5 SEM32X40 C 50.00 32.00 63.00 24.00 20.0 40.00 M16 1 0.93
C6 SEM16X100 C 63.00 16.00 38.00 17.00 78.0 100.00 M20 1 1.41
C6 SEM16X50 C 63.00 16.00 38.00 17.00 28.0 50.00 M20 1 1.00
C6 SEM22X100 C 63.00 22.00 47.00 19.00 78.0 100.00 M20 1 1.81
C6 SEM22X50 C 63.00 22.00 47.00 19.00 28.0 50.00 M20 1 1.15
C6 SEM27X100 C 63.00 27.00 58.00 21.00 78.0 100.00 M20 1 2.33
C6 SEM27X60 C 63.00 27.00 58.00 21.00 37.0 60.00 M20 1 1.52
C6 SEM32X60 C 63.00 32.00 66.00 24.00 37.0 60.00 M16 1 1.79
C6 SEM40X60 C 63.00 40.00 82.00 27.00 37.0 60.00 M20 1 2.34
C8 SEM16X50 C 80.00 16.00 38.00 17.00 20.0 50.00 M20 1 1.90
C8 SEM16X100C 80.00 16.00 38.00 17.00 70.0 100.00 M20 1 2.32
C8 SEM22X50 C 80.00 22.00 47.00 19.00 20.0 50.00 M20 1 2.01
C8 SEM22X100C 80.00 22.00 47.00 19.00 70.0 100.00 M20 1 2.88
C8 SEM27X50 C 80.00 27.00 58.00 21.00 20.0 50.00 M20 1 2.18
C8 SEM27X100C 80.00 27.00 58.00 21.00 70.0 100.00 M20 1 3.14
C8 SEM32X50 C 80.00 32.00 66.00 24.00 20.0 50.00 M16 1 2.28
C8 SEM32X100C 80.00 32.00 66.00 24.00 70.0 100.00 M16 1 3.56
C8 SEM32X78X50C 80.00 32.00 78.00 24.00 20.0 50.00 M20 1 2.20
C8 SEM32X78X100C 80.00 32.00 78.00 24.00 70.0 100.00 M20 1 4.50
C8 SEM40X60 C 80.00 40.00 82.00 27.00 30.0 60.00 M20 1 2.99
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts

Designation
C3 SEM 16X30 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C3* WRENCH COOL TUBE C3*
C4 SEM16X32 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SEM16X55 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SEM22X40 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 SEM22X55 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 SEM16X35 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SEM16X70 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SEM22X35 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SEM22X70 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SEM27X40 C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* HW 4.0* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 SEM32X40 C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 SEM16X100 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM16X50 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM22X100 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 2.5* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM22X50 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM27X100 C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* HW 4.0* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM27X60 C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* HW 4.0* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM32X60 C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 SEM40X60 C M20 CLAMP SCREW SEM40DR.DOG 16X18S SR M6X20 DIN912 WRENCH M20 SEMC 40* HW 5.0* COOLING TUBE C6* WRENCH COOL TUBE C6*
C8 SEM16X50 C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM16X100C M8 CLAMP SCREW SEM16 DR.DOG 8S SR M3X10DIN912 WRENCH M8 SEMC16* HW 2.5* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM22X50 C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM22X100C M10 CLAMP SCREW SEM22 DR.DOG 10S SR M4X10DIN912 WRENCH M10 SEMC 22* HW 3.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM27X50 C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X14DIN912 WRENCH M12 SEMC 27* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM27X100C M12 CLAMP SCREW SEM27 DR.DOG 12S SR M5X12 DIN912* SR M5X14DIN912 WRENCH M12 SEMC 27* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM32X50 C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM32X100C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM32X78X50C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM32X78X100C M16 CLAMP SCREW SEM32DR.DOG 14X13S SR M5X14DIN912 WRENCH M16 SEMC 32* HW 4.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 SEM40X60 C M20 CLAMP SCREW SEM40DR.DOG 16X18S SR M6X20 DIN912 WRENCH M20 SEMC 40* HW 5.0* COOLING TUBE C8* WRENCH COOL TUBE C8*
* Optional, should be ordered separately
