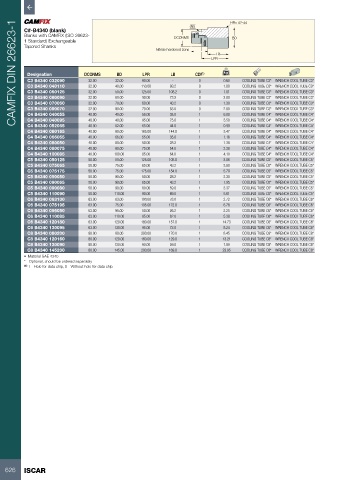

Page 628 - ISCAR(MILLINGCATALOG 38_2021)

HRc 42-44
CAMFIX DIN 26623-1
C#-B4340 (blank) N5
Blanks with CAMFIX (ISO 26623- DCONMS BD
1 Standard) Exchangeable
Tapered Shanks
Nitride hardened zone
LB
LPR

Designation DCONMS BD LPR LB CDI (1) kg
C3 B4340 032090 32.00 32.00 90.00 - 0 0.60 COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 B4340 040110 32.00 40.00 110.00 93.2 0 1.00 COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 B4340 050125 32.00 50.00 125.00 108.2 0 1.81 COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 B4340 060090 32.00 60.00 90.00 73.2 0 2.00 COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 B4340 070060 32.00 70.00 60.00 43.2 0 1.30 COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 B4340 090070 32.00 90.00 70.00 53.0 0 2.80 COOLING TUBE C3* WRENCH COOL TUBE C3*
C4 B4340 040055 40.00 40.00 55.00 35.0 1 6.00 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 040095 40.00 40.00 95.00 75.0 1 3.50 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 052065 40.00 52.00 65.00 44.0 1 0.99 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 060165 40.00 60.00 165.00 144.0 1 3.47 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 066055 40.00 66.00 55.00 35.0 1 1.16 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 080050 40.00 80.00 50.00 28.2 1 1.38 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 080075 40.00 80.00 75.00 54.0 1 2.38 COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 B4340 100085 40.00 100.00 85.00 64.0 1 4.10 COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 B4340 050125 50.00 50.00 125.00 105.0 1 2.06 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 075065 50.00 75.00 65.00 43.2 1 3.80 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 075175 50.00 75.00 175.00 154.0 1 5.79 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 090050 50.00 90.00 50.00 28.2 1 2.30 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 090065 50.00 90.00 65.00 43.2 1 1.95 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 090080 50.00 90.00 80.00 59.0 1 3.37 COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 B4340 110090 50.00 110.00 90.00 69.0 1 5.61 COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 B4340 063100 63.00 63.00 100.00 78.0 1 2.72 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 B4340 075195 63.00 75.00 195.00 172.0 1 6.78 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 B4340 095050 63.00 95.00 50.00 26.2 1 2.25 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 B4340 110085 63.00 110.00 85.00 62.0 1 5.38 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 B4340 120180 63.00 120.00 180.00 157.0 1 14.73 COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 B4340 130095 63.00 130.00 95.00 72.0 1 8.24 COOLING TUBE C6* WRENCH COOL TUBE C6*
C8 B4340 080200 80.00 80.00 200.00 170.0 1 8.45 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 B4340 120160 80.00 120.00 160.00 129.0 1 13.21 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 B4340 130090 80.00 130.00 90.00 59.0 1 7.89 COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 B4340 145200 80.00 145.00 200.00 169.0 1 23.95 COOLING TUBE C8* WRENCH COOL TUBE C8*
• Material SAE 4340
* Optional, should be ordered separately
(1) 1 - Hole for data chip, 0 - Without hole for data chip
