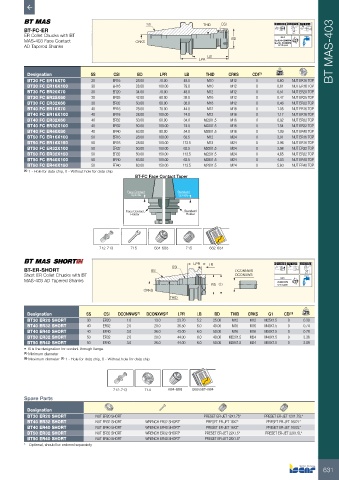

Page 633 - ISCAR(MILLINGCATALOG 38_2021)

SS THID CSI A 0.003 A 58-60 HRc AT3 Taper
BT-FC-ER

ER Collet Chucks with BT
G2.5
MAS-403 Face Contact CRKS BD Size 30, 40= 25,000RPM
Size 50= 20.000RPM
AD Tapered Shanks U<1.0 gmm
LB BT MAS-403
LPR
Designation SS CSI BD LPR LB THID CRKS CDI (1) kg
BT30 FC ER16X70 30 ER16 28.00 70.00 48.0 M10 M12 0 0.60 NUT ER16 TOP
BT30 FC ER16X100 30 ER16 28.00 100.00 79.0 M10 M12 0 0.61 NUT ER16 TOP
BT30 FC ER20X70 30 ER20 34.00 70.00 48.0 M12 M12 0 0.51 NUT ER20 TOP
BT30 FC ER25X60 30 ER25 42.00 60.00 38.0 M16 M12 0 0.47 NUT ER25 TOP
BT30 FC ER32X60 30 ER32 50.00 60.00 38.0 M18 M12 0 0.46 NUT ER32 TOP
BT40 FC ER16X70 40 ER16 28.00 70.00 44.0 M12 M16 0 1.05 NUT ER16 TOP
BT40 FC ER16X100 40 ER16 28.00 100.00 74.0 M12 M16 0 1.17 NUT ER16 TOP
BT40 FC ER32X60 40 ER32 50.00 60.00 34.0 M22X1.5 M16 0 0.92 NUT ER32 TOP
BT40 FC ER32X100 40 ER32 50.00 100.00 74.0 M22X1.5 M16 0 1.54 NUT ER32 TOP
BT40 FC ER40X80 40 ER40 63.00 80.00 54.0 M28X1.5 M16 0 1.09 NUT ER40 TOP
BT50 FC ER16X100 50 ER16 28.00 100.00 63.5 M12 M24 0 3.91 NUT ER16 TOP
BT50 FC ER16X150 50 ER16 28.00 150.00 113.5 M12 M24 0 3.96 NUT ER16 TOP
BT50 FC ER32X100 50 ER32 50.00 100.00 63.5 M22X1.5 M24 0 3.98 NUT ER32 TOP
BT50 FC ER32X150 50 ER32 50.00 150.00 113.5 M22X1.5 M24 0 4.65 NUT ER32 TOP
BT50 FC ER40X100 50 ER40 63.00 100.00 63.5 M28X1.5 M24 0 4.03 NUT ER40 TOP
BT50 FC ER40X150 50 ER40 63.00 150.00 113.5 M28X1.5 M24 0 5.60 NUT ER40 TOP
(1) 1 - Hole for data chip, 0 - Without hole for data chip
BT-FC Face Contact Taper

Face Contact Standard
Spindle Spindle

Face Contact Standard
Holder Holder

712-713 715 684-688 715 682-684

LPR LB A 0.003 A AT3 Taper 58-60 HRc
BT-ER-SHORT SS CSI DCONNWS
Short ER Collet Chucks with BT DCONXWS
G2.5
MAS-403 AD Tapered Shanks 20,000 RPM
BD G1 U<1.0 gmm
CRKS
THID

Designation SS CSI DCONNWS (1) DCONXWS (2) LPR LB BD THID CRKS G1 CDI (3) kg
BT30 ER20 SHORT 30 ER20 1.0 13.0 23.70 5.2 25.00 M12 M12 M25X1.5 0 0.30
BT40 ER32 SHORT 40 ER32 2.0 20.0 36.50 6.0 40.00 M16 M16 M40X1.5 0 0.74
BT40 ER40 SHORT 40 ER40 3.0 26.0 43.00 6.0 50.00 M16 M16 M50X1.5 0 0.78
BT50 ER32 SHORT 50 ER32 2.0 20.0 44.00 6.0 40.00 M22X1.5 M24 M40X1.5 0 3.36
BT50 ER40 SHORT 50 ER40 3.0 26.0 44.00 6.0 50.00 M28X1.5 M24 M50X1.5 0 3.09
• B is the designation for coolant through flange.
(1) Minimum diameter
(2) Maximum diameter (1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713 714 684-688 559,682-684
Spare Parts
Designation
BT30 ER20 SHORT NUT ER20 SHORT PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
BT40 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
BT40 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
BT50 ER32 SHORT NUT ER32 SHORT WRENCH ER32 SHORT* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
BT50 ER40 SHORT NUT ER40 SHORT WRENCH ER40 SHORT* PRESET ER-JET 28X1.5*
* Optional, should be ordered separately

631
